Applications

Our Applications page is packed with useful information and additional details / instructions for those building energy management products listed on our website. Diagrams, info-graphic charts, and videos are all shown here to help you make the right choice for your applications needs.

This area will be updated as we add products we stock and retail.

For further details on applications, product specification, for items listed on this page or for products listed on our website please Contact Smart Building Products. Our experienced team of building energy management specialists are knowledgeable and on hand to help.

Alternatively, why not click to chat with one of our operators online (bottom right online chat facility).

Radiator valve actuators control heating on a single room level. They offer energy savings solutions based on scheduled target temperatures and maintain the comfort temperature of choice.

The main advantages are that they:

  • Provide accurate temperature control
  • Eliminate overheating
  • Remove the need to retrofit wires (which is time consuming and expensive),
  • Reduce overall energy consumption
  • Battery free
  • Maintenance free.

These actuators offer solutions and are available for both residential and commercial buildings.

The EnOcean radio standard as well as other wireless standards can be used for a variety of applications: From a single room to complex and integrated building automation systems.

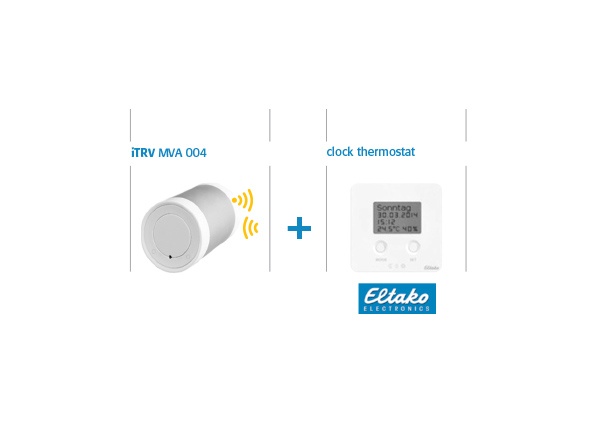

Single room solutions
  • MVA 004 and wireless clock thermostat FUTH65 for surface or flush-mount installation.
  • Day and week programmes to control and reduce heating.
  • Supports window contacts and setback temperature.
  • Cost efficient, easy to install.

MVA 004 Single Room Applications

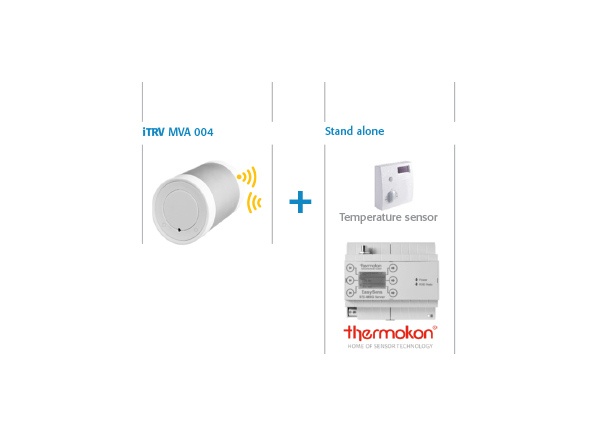

Multi-room and floor-level solution
  • MVA 004 and heating controller STC MSG.
  • Room temperature sensor with set-point device and presence button.
  • 8 or 16 radiators controlled individually.
  • Window contact and presence detector possible.
  • Quick installation with great savings potential.
  • Ideal for retro-fit installation.
  • Ideal for multi-room or floor-level solution.

MVA 004 - Multi-room and floor-level solutions and applications

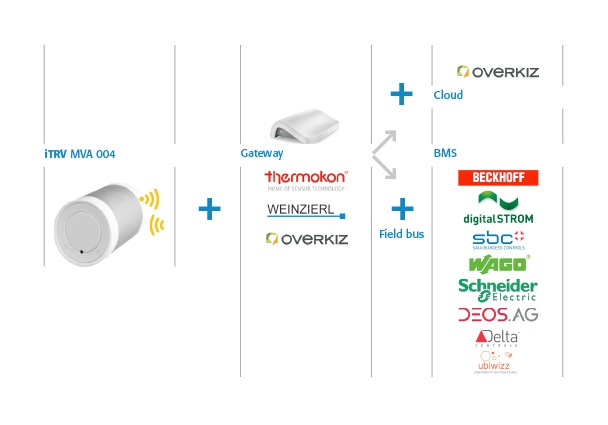

Solutions for floor and buildings
  • MVA 004 and MVA 005 are compatible with all building automation systems.
  • BACnet, Modbus and KNX Protocol Gateways are available to match any System
  • Ideal for whole building solutions and floors.

MVA 003 - Compatibile solutions for floor and buildings

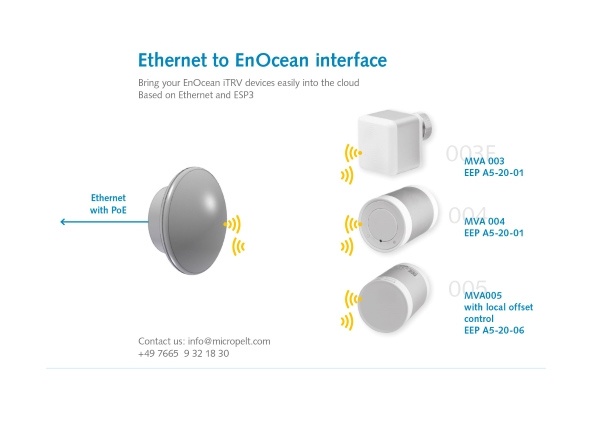

Ethernet / Cloud Solution

Micropelts MVA Series and EEPs (A5-20-01 as well as A5-20-06) is fully supported by DEUTA Controls ENO DISC Solution

Ethernet / Cloud Solution - Micropelts MVA Series and EEPs

Battery-free switches and sensors from EnOcean for energy-efficient, comfortable and safe buildings.

Self-powered sensors are used for building automation systems. With them, lighting, heating, security and other services can be controlled intelligently and in an energy-saving way. Our maintenance-free and self-powered wireless solutions can be integrated flexibly and seamlessly into systems for a wide range of applications. Once installed, the sensors do their job reliably. Our solutions can be installed quickly and help to significantly reduce energy consumption and CO2 emissions in our buildings.

Depending on requirements, there is a comprehensive portfolio of products and solutions for building automation, from modules to white-label products and finished end products. We enable low-maintenance sensor networks, flexibly networked for every requirement, every building and every customer demand – with our basic modules for the receiver side, actuators and gateway solutions.

Part 1: Why wireless & batteryless?

Part 2: EnOcean technology

Part 3: Installation of EnOcean Devices

Part 4: Wireless range planning

EnOcean’s seal “Battery-free by EnOcean” for self-powered wireless sensors

EnOcean is introducing the new “Battery-free by EnOcean” seal to make the branded wireless sensors benefits visible at a glance for consumers, such as battery-free and wire-free operation, maintenance freedom, flexibility and comfort.

The new “Battery-free by EnOcean” seal identifies battery-free wireless sensor solutions based on the EnOcean technology. In the future, this seal will highlight for example maintenance-free and flexible switch solutions that do not require any batteries or wires.

Product manufacturers can use the new seal to promote their battery-free, wireless sensor solutions integrating EnOcean’s energy harvesting technology for leading wireless standards such as EnOcean, Bluetooth® and Zigbee. This move will raise consumer awareness of the benefits of e.g. switches based on the EnOcean technology, which gain their energy from motion solely.

Signify first to offer battery-free technology from EnOcean in its Friends of Hue program for smart switches.

Some of the first providers who can apply the new “Battery-free by EnOcean” seal to highlight their products’ special feature are the Friends of Hue Switch partners of Signify (formerly Philips Lighting), a long standing EnOcean partner in the area of Zigbee-based wireless solutions. As part of the Friends of Hue program, Busch-Jaeger (ABB), Feller, Illumra, Niko and Vimar currently, or in the near future, offer smart switches based on EnOcean’s self-powered technology. More information on the Friends of Hue program can be found at www.meethue.com/integrate.

EnOcean and Signify have a longstanding partnership. The Philips Hue Tap, for instance, is a battery-free wireless switch based on EnOcean’s energy harvesting technology, which consumers can use to comfortably control their Philips Hue lighting system.

Overview of “Battery-free by EnOcean” wireless sensors
Please find all certified wireless sensors “Battery-free by EnOcean” here.

Join the “Battery-free by EnOcean” program

If a product meets the necessary criteria, product manufacturers can use the energy harvesting seal as an identifying mark on the product packaging, in marketing or technical materials as well as on the product’s website. Thus, the “Battery-free by EnOcean” seal enables end users, for example, to determine just from the packaging that the switch within does not require any batteries and therefore offers a high degree of flexibility, comfort and sustainability.

The new branding benefits switch manufacturers through the increased visibility of the energy harvesting technology and its advantages, so that they can set themselves apart from competitors. Find here more information on the application process.

Applications PDF Download Icon
