FR62-230V
£48.00
Tags:

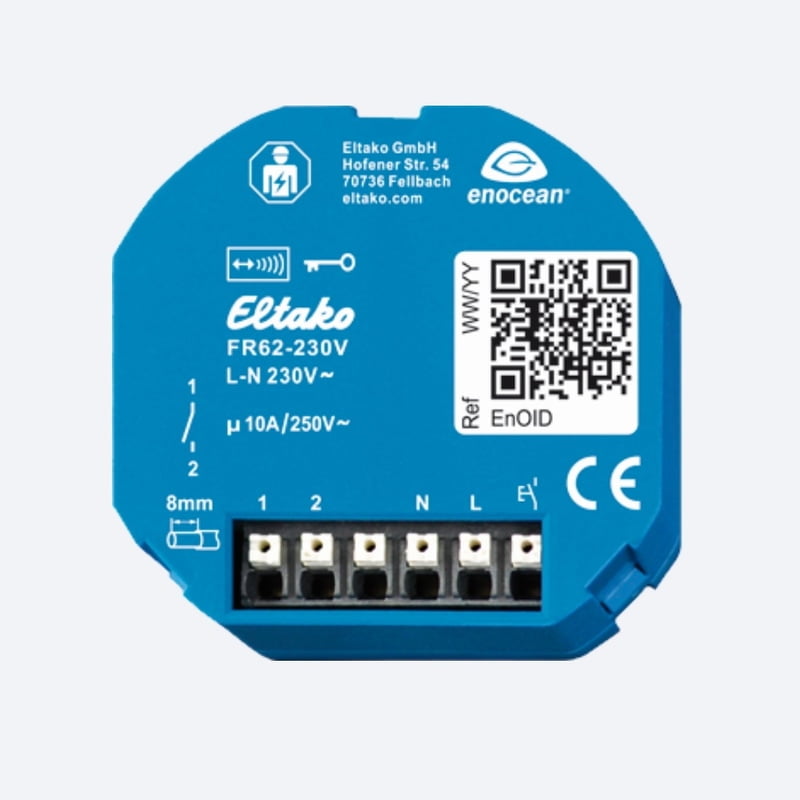

Wireless relay actuator FR62-230V 10 A/250 V AC. 1 NO contact or NC contact, potential free. Standby loss only 0.4 watt.
Part Number
30100540 Choose Quantity
Product Details
Technical Specifications
- Supply voltage, switching voltage and control voltage - 230 V.
- If supply voltage fails, the device is switched off in defined mode. When the supply voltage is restored, the device is switched off in a defined process. After installation, wait until the automatic synchronisation takes place before the device is connected to the network.
- In addition to the wireless control input via an internal antenna, this wireless actuator can also be controlled locally by a conventional 230 V control switch.
- Glow lamp current is not permitted.
- During teach-in, the function of the contact position is defined as NO or NC. Contact is closed with at least one open window; it can then activate extraction hoods etc. or generate an alarm.
- Opens the contact when at least one window is open: it can then switch off heaters or air conditioners.
- Several wireless window contacts are linked together. The function is determined by the last wireless window contact which is taught in
