Milesight AM307L 9-in-1 IAQ Sensor
£209.00
Tags:
Milesight AM307L 9-in-1 IAQ Sensor
More Knowing. Less Guessing.
- 9 Sensors in 1.
- Optional 4.2 Inch E-ink Screen.
- Traffic Light Indicator & Buzzer.
- Anti-theft Protection.
- Battery Life up to 4 Years.
Choose Quantity
Product Details
Specifications

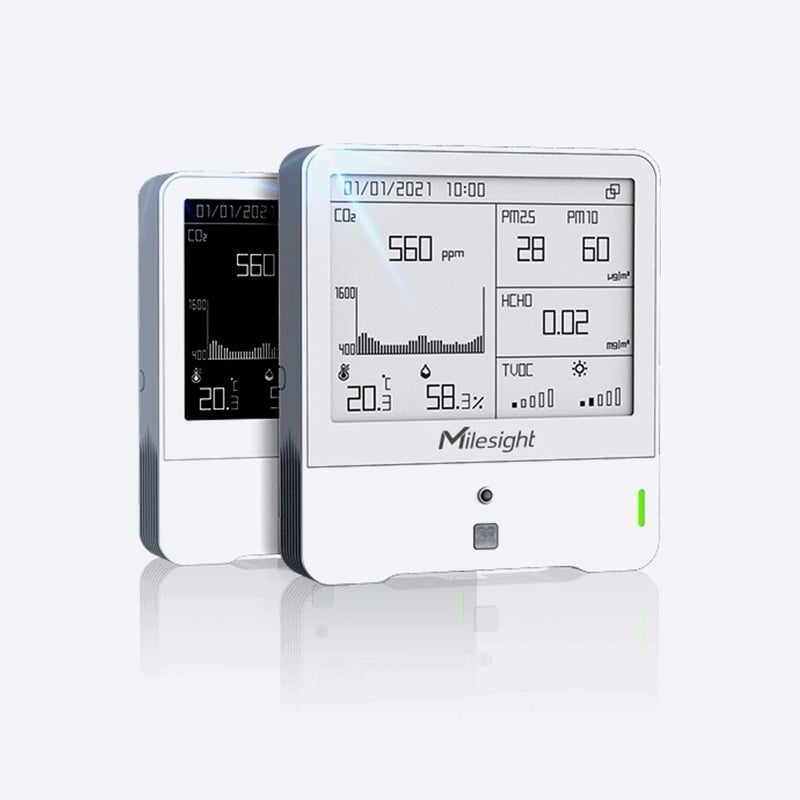

Milesight AM307L 9-in-1 IAQ Sensor
Improving Energy Efficiency and Indoor Comfort
The Milesight AM307L 9-in-1 IAQ Sensor is a comprehensive IAQ sensor for detecting CO2 concentration, temperature, humidity, light, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion.
9 Sensors in 1
Integrated 9 types of sensor to measure various ambience conditions.
Higher Accuracy with Better Insulation Design
Placement for temperature and humidity sensors is designed to isolate the heat generated when the chip is operating.
Superior Sensor with Strong Anti-Interference
Selection for HCHO sensor is dedicated to stable reading, particularly in its resistance to alcohol.
Indoor Comfort Level Understand Your Environment Visually
Monitor and display real-time data on what matters in your indoor air quality.
More Features with Bigger E-Ink Screen
The Milesight AM307L 9-in-1 IAQ Sensor equips with a 4.2-inch E-ink screen to show the real-time ambience conditions in many ways.
Indoor Air Monitoring (IAQ) Solution
At Milesight, we help you and your people to live in a safer and healthier facilities. Towards that end, real-time data about air quality is essential. And that starts with our one-stop solution for indoor air quality (IAQ).
Smart Screen Mode for Energy-Saving Operations
When PIR value is 0 (Vacant) and last for 20 mins, the screen will stop updating to save power.
Multi-Year Battery Operation
LoRaWAN® Based
Strong Store Capacity of Historical Data Records
- 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries.
- The Milesight AM307L 9-in-1 IAQ Sensor can also be powered via Type-C.
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas.
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers.
Data can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information.
Support Retransmission for Reliable Communication With support for data retransmission, the device guarantees that the web server gets all the data even if the network is down occasionally.
Cloud Data Management Milesight IoT Cloud
NFC Configuration Switching On/Off & Configuring the Devices Wirelessly.
- Data Visualization Dashboard: All figures in a glance.
- Automatic Triggers: Interactive collaboration with Milesight IoT sensors to realize scene-based automation.
- Regular Reports & Real-Time Alerts: Data-based insights.
- Android & iOS App: Manage devices at your fingertips.
Easy Installation
- Anti-theft Design.
- Fixed by 3M Tape.
- Wall Mounting.
- 86Box Mounting.
Specification
- Expected Battery Life4 Years
- FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
- Tx Power16dBm(868 MHz)/22dBm(915 MHz)/19dBm(470 MHz)
- IP RatingIP30
- Sensitivity-137dBm @300bps
- ModeOTAA/ABP Class A
- Horizontal Detection Area80 °
- Vertical Detection Area55 °
- ConfigurationMobile App (via NFC) or PC software (via USB Type-C)
- Power Supply1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries / 2. 5V/1A by Type-C Port
