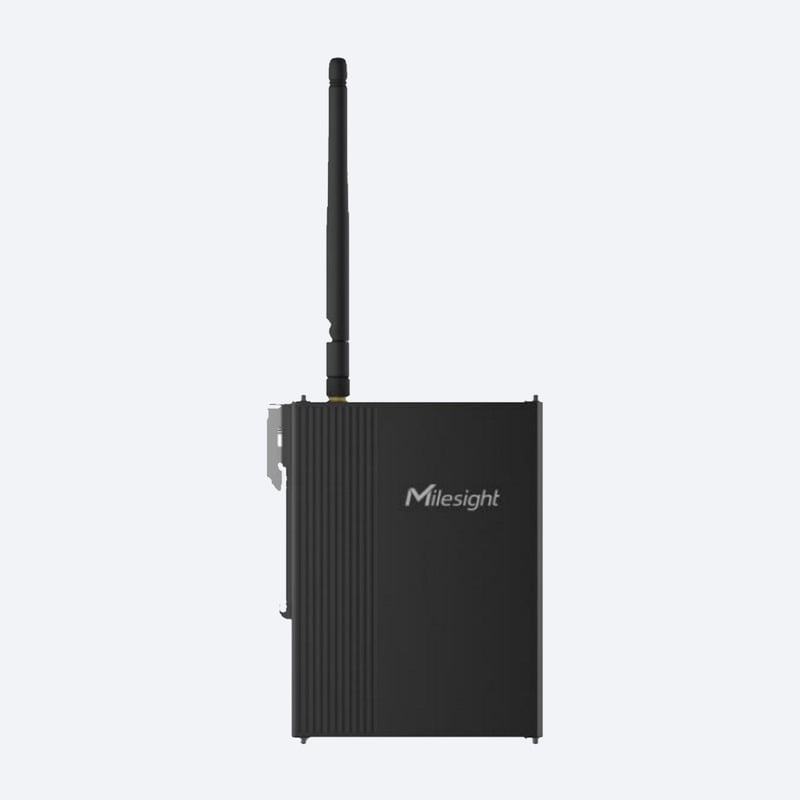

Milesight UC300 LoRaWAN IoT Controller with LTE / Inbuilt 4G Modem
£169.00
Tags:
Milesight UC300 LoRaWAN IoT Controller / Inbuilt 4G Modem
- Rich Industrial Interfaces.
- Temperature Transmitter.
- Intelligent Trigger System.
- Autonomous Operation.
- Flexible Cloud Integration.
Choose Quantity
Product Details
Specifications
Milesight UC300 LoRaWAN IoT Controller / Inbuilt 4G Modem - Re-imagine Remote Monitoring and Control
Flexible Installation
LoRaWAN® & 4G LTE
The UC300 IoT Controller supports global LoRaWAN® frequency plans or 4G LTE as backhaul connectivity to meet different projects.
Rich Industrial Interfaces
Integrating multiple and various kind of industrial interfaces for monitoring and control field sensors or devices simultaneously.
Temperature Transmitter
- 6 × Analog Inputs.
- 4 × Digital Inputs.
- 2 × Digital Outputs.
- 1 × RS232 + 1 × RS485.
Besides the 4~20 mA & 0~10 V type analog interfaces, the UC300 firstly adopts 2 RTD inputs for accepting and converting 2/3 wires PT100 sensors‘ resistance signal into 4-20 mA current signal with a range from -200°C to 800°C.
Intelligent Trigger System
Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent task like timing data collection.
Autonomous Operation
Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable.
Flexible Cloud Integration
Support TCP/UDP/MQTT protocol, UC300 IoT controller is compatible with multiple Cloud platforms such as AWS (for cellular version only) and Milesight IoT Cloud.
Milesight IoT Cloud
- Store, manage and analyze all your data with a few clicks.
- Android & iOS versions allow you to manage devices at your fingertips.
Specification
- TechnologyLoRaWAN® or 2G/3G/4G
- Interface Type3.5 mm Terminal Block
- Configuration Port1 × Type-C
- LED Indicator1 × System, 1 × ACT
- ModeOTAA/ABP Class C
- Sensitivity-137dBm @300bps
- Port1 × RS232 + 1 × RS485
