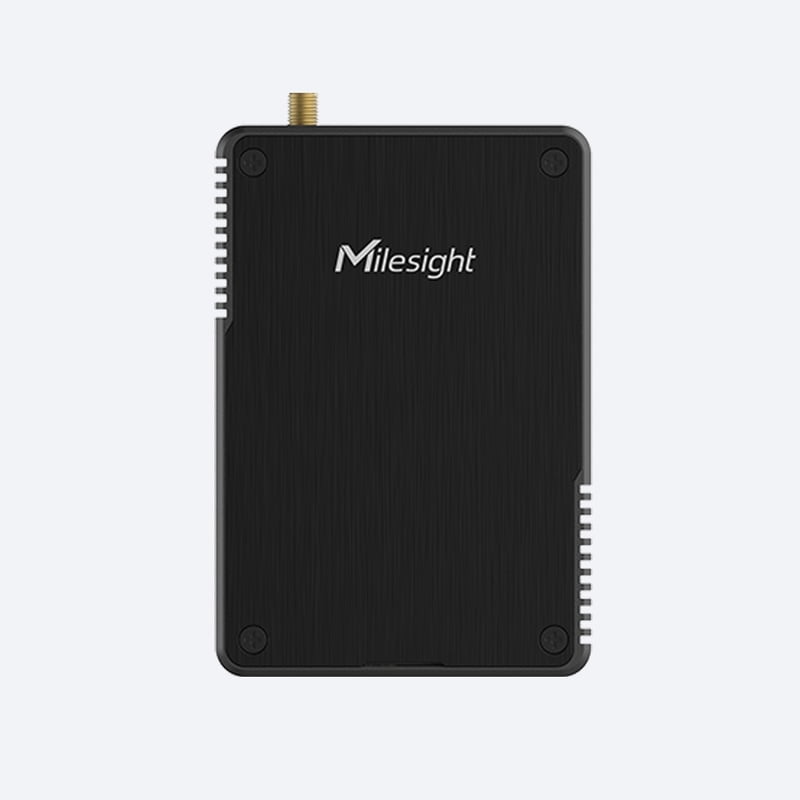

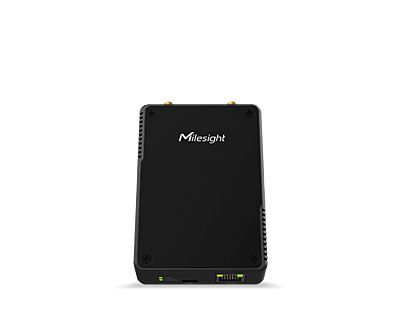

Milesight UG56 LoRaWAN Gateway with LTE

Milesight UG56 LoRaWAN Gateway with LTE

£320.00
Tags:

Milesight UG56 LoRaWAN Gateway with LTE
UG56 Industrial LoRaWAN® Gateway - UG56 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.
  • Industrial-Grade Design.
  • Listen Before Talk.
  • Gateway Fleet.
  • Free Embedded Network Server.
  • Multiple Backhaul Connectivities.
  • Global LoRaWAN® Frequency Plans.



Choose Quantity
+ Add to Cart
Product Details
Specifications
UG56 Industrial LoRaWAN® Gateway - Bridge the Gap. Be Connected.

Penetrating Obstructions Through and Through
Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas.

Towards Massive Connectivity for IoT Deployments
  • 8 Channels.
  • Quad-core CPU.
Adopting Semtech SX1302 LoRa chip, UG56 supports connection with more than 2000 LoRaWAN® nodes.

Optimizing Coverage and Placement Concurrently

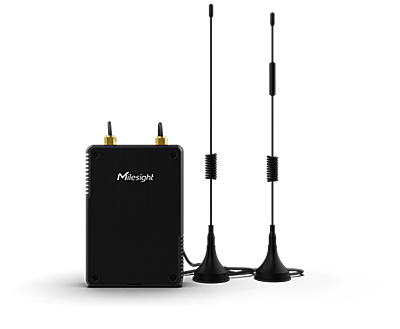

The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas.

Gateway Fleet
The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

Listen Before Talk
UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment.

Enabling Multiple Backhaul Connectivities
Stay connected via Ethernet, cellular, and Wi-Fi.

Supporting Multiple Network Servers
Besides the built-in network server, UG56 is also compatible with multiple network server platforms like TTN, ChirpStack, Everynet, Senet, etc.

Milesight IoT Cloud
  • Store, manage and analyze all your data with a few clicks.
  • Android & iOS versions allow you to manage devices at your fingertips.

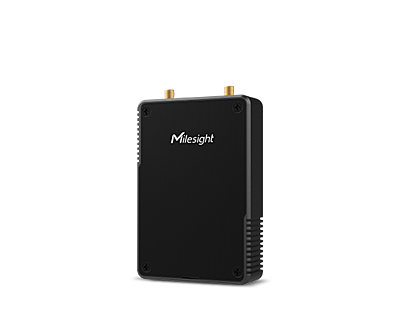

Flexible InstallationMilesight UG56 LoRaWAN Gateway with LTE Flexible Installation
Specification
  • CPU
    Quad-core 1.3 GHz, 64-bit ARM Cortex-A35
  • Memory
    512 MB DDR3 RAM
  • Channel
    8 (Half/Full-duplex)
  • Output Power
    27 dBm Max
