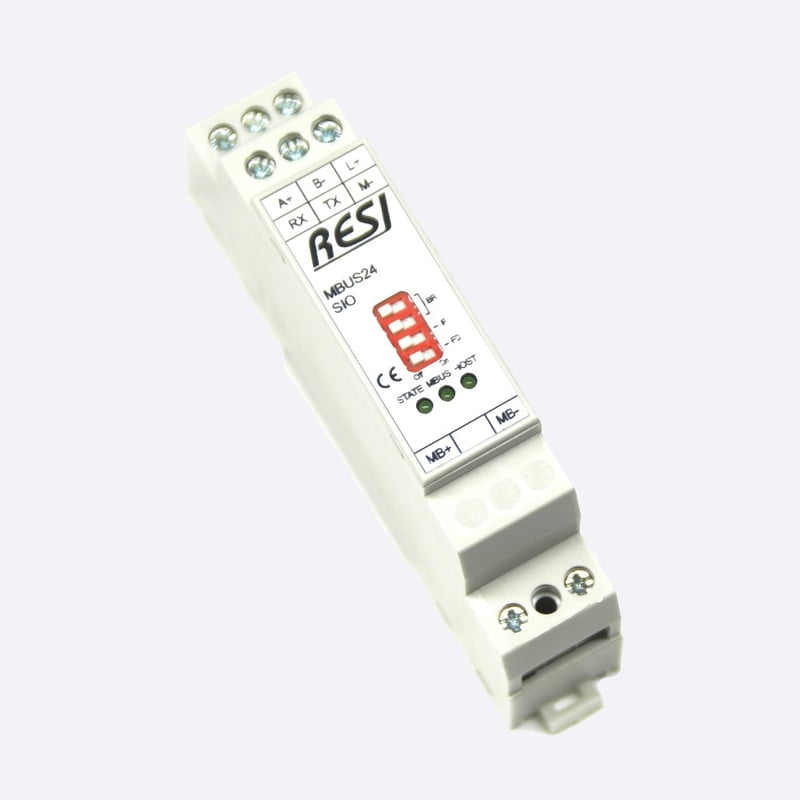

RESI-MBUS24-SIO Modbus Gateway

RESI-MBUS24-SIO Modbus Gateway


RESI-MBUS24-SIO M-Bus to Modbus Serial gateway MBUS-MODBUS/RTU slave, max. 24 meter, max. 1000 MODBUS register

Interface #1RS232/RS485
Interface #2MBUS:24 meter
ProtocolMODBUS+ASCII slave

Choose Quantity
+ Add to Cart
Product Details
RESI-MBUS24-SIO M-Bus to Modbus

Consisting of a serial MeterBus converter for 24 smart meter with MBUS interface, maximum 24 meter (=unit loads) and 1000 MODBUS registers, host communication via RS232 or RS485 with MODBUS/RTU slave or ASCII text protocol, host baud rates: 300-256000Bd, none, even or odd parity, 8 data bits, 1 or 2 stop bits, MBUS communication speed from 300bps to 57600bps, Mbus and Modbus are galvanically isolated, configuration and test of the module via our free LIBRE OFFICE (R) based configurator software or with our free PC software MODBUSConfigurator

Technical Details
  • Size (LxBxH):17.5x90x58mm
  • Weight:55g
  • Power supply:12-48V=
  • Power consumption:8.0W
  • Housing:1MU
  • Mounting:mountable on 35mm EN50022 DIN rail
  • Terminals:Cable cross section: max. 2.5 mm², max. 14AWG Screw: M3 Tightening torque: max. 0.5Nm, max. 4.5 Lb-in
  • Certificate:CE
  • Protection class:IP20
  • TARIC number:8538 90 91
