Product Details

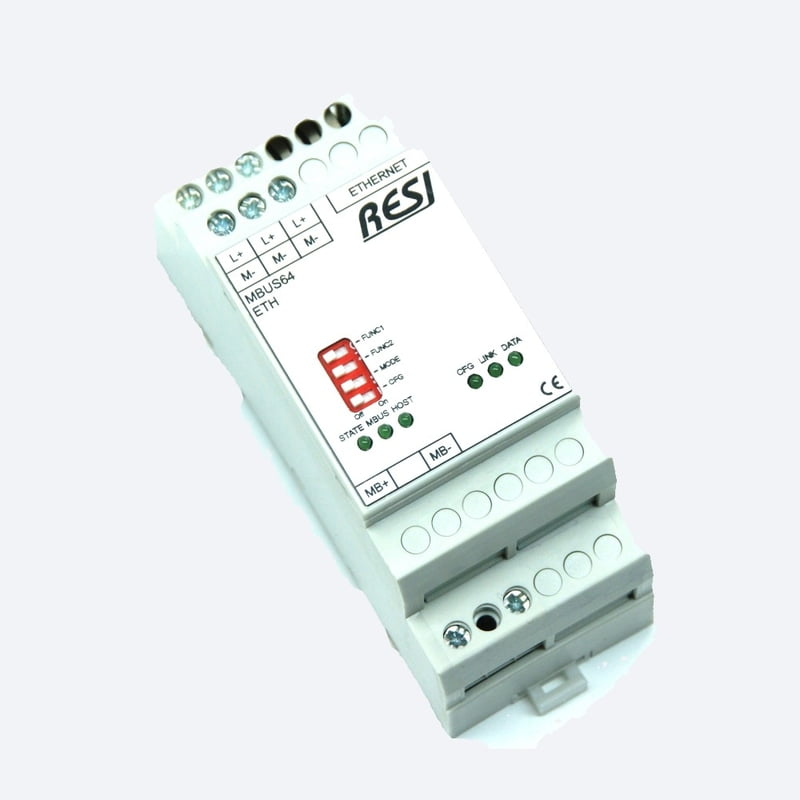

RESI-MBUS64-ETH M-Bus to Modbus TCP
Consisting of a MeterBus converter with Ethernet interface for 64 smart meter with MBUS interface, maximum 64 meter (=unit loads) and 1200 MODBUS registers, host communication via Ethernet with MODBUS/TCP server or ASCII text protocol, MBUS communication speed from 300bps to 57600bps, Mbus and Ethernet are galvanically isolated, configuration and test of the module via our free LIBRE OFFICE (R) based configurator software or with our free PC software MODBUSConfigurator
Technical Details
- Size (LxBxH):35.8x90x58mm
- Weight:90g
- Power supply:12-48V=
- Power consumption:8.4W
- Housing:2MU
- Mounting:mountable on 35mm EN50022 DIN rail
- Terminals:Cable cross section: max. 2.5 mm², max. 14AWG Screw: M3 Tightening torque: max. 0.5Nm, max. 4.5 Lb-in
- Certificate:CE
- Protection class:IP20
- TARIC number:8538 90 91
