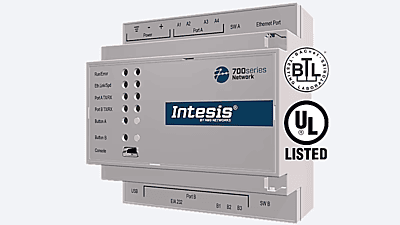

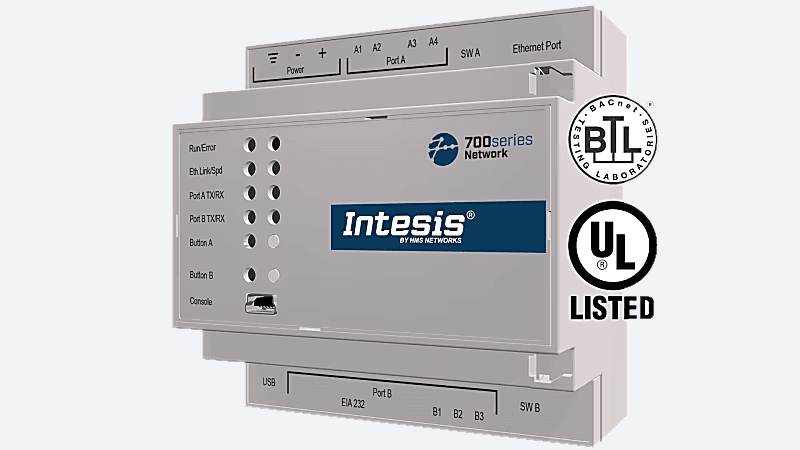

Intesis DALI-2 to Modbus TCP & RTU or BACnet/IP & MS/TP Server Application with 1 DALI Channel
Features and benefits
- BACnet support
o The gateway is BTL certified and supports both BACnet/IP and BACnet MS/TP protocols.
- BACnet advanced features
o BACnet's advanced features, such as calendars, trend logs, schedules, and more, are available.
- DALI support
o The gateway is DALI-2 certified and supports DALI/DALI-2 drivers and DALI-2 input devices: Push buttons, absolute input devices, and occupancy and light sensors.
- Easy DALI commissioning/integration w/Intesis MAPS
o Integration and DALI commissioning processes are managed via the Intesis MAPS configuration tool. Templates can be imported and reused as often as needed, significantly reducing commissioning time.
- Local control options
o Occupancy and light sensors, push buttons, and absolute inputs can be locally controlled from the gateway. The DALI standard device type for Energy and Diagnostic data has also been implemented.
- Color control
o RGB and tunable white controls are available in Intesis MAPS, to cover the demand for Human Centric Lighting.
- Max 64 drivers/ballasts + 64 DALI-2 input devices
o Supports up to 64 drivers/ballasts + 64 DALI-2 input devices (sensors/push buttons/absolute inputs).
- Signals and power
o A DALI power supply is integrated into the gateway, so no external power supply is required. Up to 10,000 signals can be defined in total, with a guaranteed output current of 230 mA.
