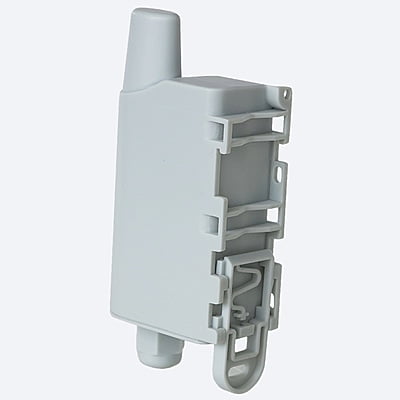

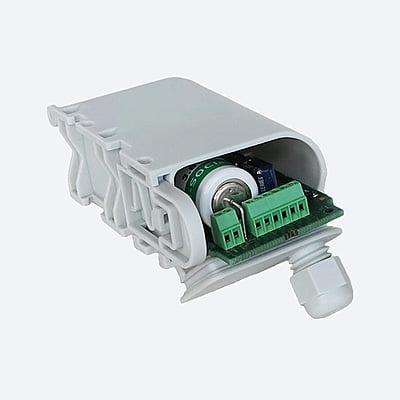

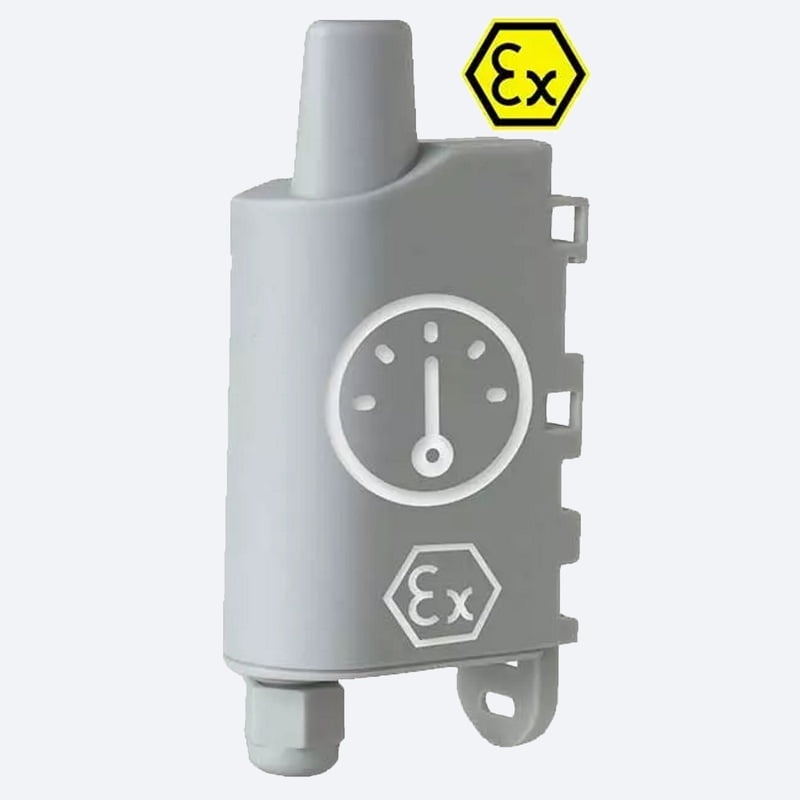

Adeunis Pulse ATEX: LoRaWAN impulse interface
£99.00
Tags:
- Up to 2 connectable meters
- ATEX product: used in explosive atmosphere
- · Gas & steam
- Zone 1: immediate proximity to the sensitive area
- Groupe IIC: hydrogen gases and vapors, acetylene …
- · Dust
- Zone 21: immediate proximity to the sensitive area
- · Gas & steam
- Detection of tampers and leaks
- Meter flow rate monitoring
- Local and remote configurable of the IoT sensor
- Data logging for optimal autonomy
- Redundancy for better service continuity
- Timestamp (LoRaWAN®)
- Network test at startup (LoRaWAN®)
- Compatible with KARE© services
Choose Quantity
Product Details
Features
- Periodic modes with or without log
- Data redundancy
- Configurable lifeframe
- Timestamp
- Network test at startup
- Personalisation of the joint phase
- Alert concerning product, configuration error, low battery
- Dimensions: 105 x 50 x 27 mm
- Weight: 70 g
- Casing: IP67 (IP68 on request)
- Integrated fastening system: DIN rail, tube, wall mount, flange
- Operating temperature range: -25°C to + 70°C
- Soldered battery
- Zone:
- LoRaWAN®: EU863-870
- Standards: Directive 2014/53/EU (RED)
- ATEX II 2 G D
- Ex ib IIC T4 Gb
- Ex ib IIIC T135°C Db
- -20°C < Tamb < +40°C
- Uo ≤ 3.9V; Io ≤ 6.1mA; Po ≤ 6mW; Co ≤ 440µF; Lo ≤ 930mHUi ≤ 15V; Ii ≤ 1000mA; Pi ≤ 3750mW; Ci = 0µF; Li = 126nH
