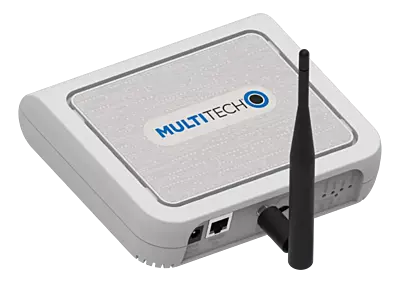

Multitech Conduit® AP 300 Series with BACnet
Multitech Conduit® AP 300 Series with BACnet
Multitech Conduit® AP 300 Series with BACnet

Multitech Conduit® AP 300 Series with BACnet

£322.00

Indoor LoRaWAN 8 Channel
Gateway providing superior in-building wireless penetration.

Seamlessly connect thousands of sensors wirelessly within smart buildings to meet the demands of Retail Operations, Quick Serve Restaurants, C-Stores, Grocery, Expo, Higher Education, and Commercial Real Estate.

KEY BENEFITS

  • Integrations with cloud-based LoRa Network Server and IoT Cloud platforms
  • Embedded LoRa Network Server for an out-of-box LoRaWAN network
  • MultiTech DeviceHQ® device, network and application management
  • Global LoRa frequency plans
  • GCF, PTCRB, and Mobile Network Operator approvals

FEATURES

  • mPower Edge Intelligence operating system
  • Secure Boot, data encryption and dual-image partitioning
  • Python, C, C++, JavaScript, Node.js
  • SX1303 8-channel LoRa baseband processor
  • LoRaWAN 1.0.4 specification compliant (software upgradeable to future releases)
  • Listen-Before-Talk

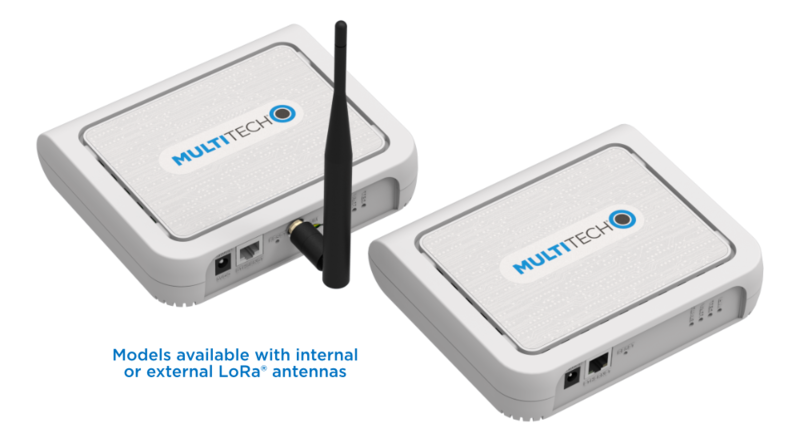

  • Internal or External LoRa antenna options
  • Configurable UDP and Basic Station Packet Forwarder
  • LoRaWAN MQTT Broker application
Part Number
MTCAP3-EN-A23EEA-LEM-BAC.R1
Choose Quantity
+ Add to Cart
Product Details
Specifications

BACnet Integrated Solutions

LoRa® Technology for Building Management Systems integrated with BACnet™ Connectivity License MultiTech Conduit® AP 300 Series Access Point featuring the mPower™ Edge Intelligence operating system serves as a gateway or access point that enables connectivity between LoRaWAN® wireless IoT devices and the network or cloud infrastructure.

Specification
  • CPU
    528 MHz, ARM Cortex-A7
  • Supply voltage range
    5VDC
  • Speed (Ethernet)
    10, 100 Mbit/s
  • Frequency
    868 MHz
  • Rated supply voltage
    5VDC
  • Channel
    8 (Half/Full-duplex)
  • Output Power
    27 dBm Max
  • Connector (Ethernet)
    RJ45
