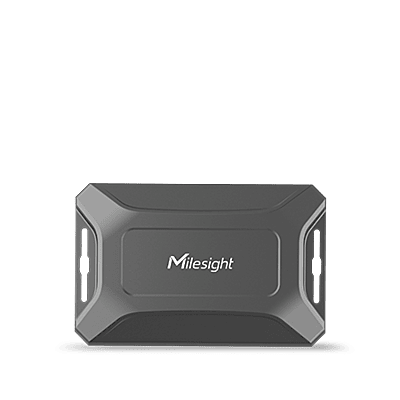

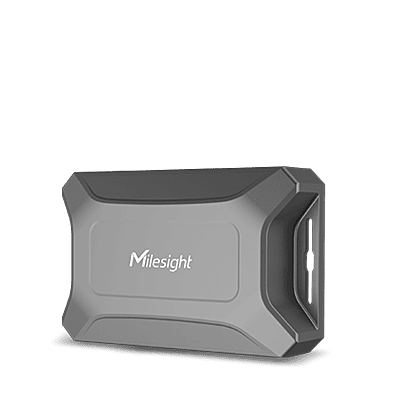

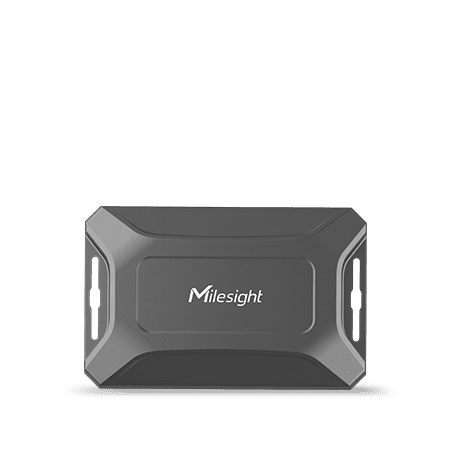

Milesight AT101 Outdoor Asset Tracker
£108.00
Part Number
AT101-868M Choose Quantity
Product Details
Specifications
The Milesight AT101 Outdoor Asset Tracker is a LoRaWAN device designed to monitor asset location, movement, tilt and temperature. It supports GNSS positioning for outdoor environments and Wi-Fi access point scanning for indoor or built-up locations. The device can operate in periodic, motion-based or scheduled reporting modes and supports geofencing, tilt alarms and tamper detection.
The AT101 has an IP67-rated enclosure, IK09 impact protection and UV-resistant housing for outdoor use. It stores up to 1,000 historical records locally and supports data retransmission after network interruptions. Configuration is available through NFC, Bluetooth 5.3 or LoRaWAN downlink.
It uses four replaceable ER14505 lithium batteries. Under the manufacturer’s laboratory test conditions, stated battery life is over 15 years with two location updates per day, over eight years with ten updates per day, and over four years with hourly updates.
Trackers
- FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
- Tx Power16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
- Sensitivity-137 dBm @300bps
- ModeOTAA/ABP Class A
- Position Accuracy (CEP)5.0m (Direct Line of Sight)
- Time To First FixCold Start: 37s Average / Hot Start: 1s Average
- Wi-Fi Standard802.11b/g/n 2.4GHz
- MotionNormal/Tilt
- Range-40 ~ 125°C
- Resolution0.1°C
- Power Supply4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
- Operating Temperature-30°C ~ +70°C
- Ingress ProtectionIP67
- Impact ProtectionIK09
- Dimension110 × 70 × 30 mm (4.33 × 2.76 × 1.18 in)
