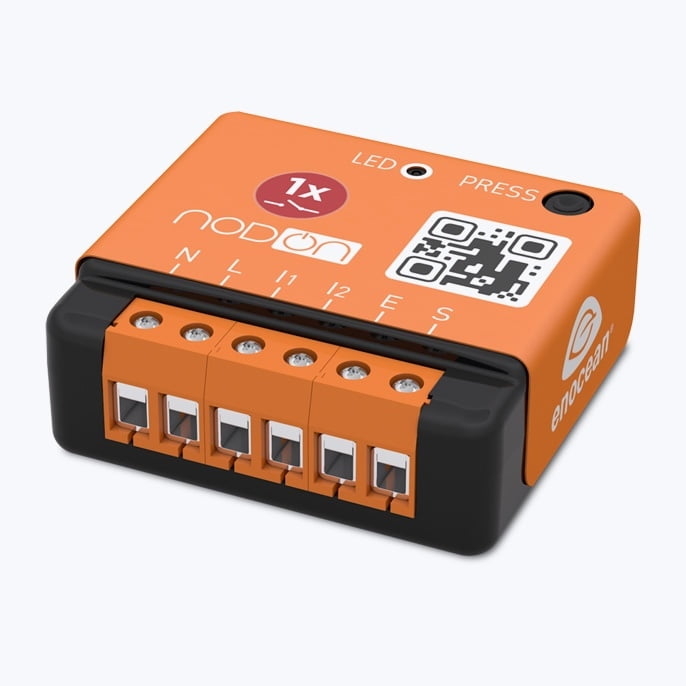

Enocean 1 Channel Relay Switch
Non-returnable
£49.00
Tags:
Control everything you want, from a single actuator such as: Lights / Heaters / Boiler / Garage Door etc and finally make your home smart.
Compatible with the EnOcean worldwide Smart Home / Smart Building protocol, this EnOcean 1 Channel Relay Switch can be mounted in your ceiling, in your wall or behind your electrical socket and will turn any standard device into a smart device. With its 2300W switching capacity and potential-free output you can make your home smarter without changing any single appliance.
Choose Quantity
Product Details
Specifications
High switching capacity
With a capacity of 2300W, you can switch ON/OFF almost everything.
Ultra low profile
A concentrate of technology and features in less than 17mm thickness.
Potential-free input
Whatever you put in, the EnOcean Relay Switch will drive it out. Possibilities are limitless from light control to a boiler or to a garage door.
Remote commissioning
Using latest EnOcean specifications, the NodOn Relay Switch can be fully commissioned without any physical intervention from the installer.
Specification
- Power Supply:230V AC ~ 50Hz
- Switching capabilities230V AC – 10A // 30V DC – 10A
- Consumption1W
- Maximum Output Power (Resistive Load)2.3kW
- Radio Frequency Range868,0 to 868,6 Mhz
- RF Power Max+3dBm
- Indoor Range30m
- Operational Temperature0°C to 40°C
- Protection RatingIP 2X
- Pairingup to 22 controllers
- EEP (Enocean Profile)D2-01-0F
- Length44mm
- Width40mm
- Height16.9mm
