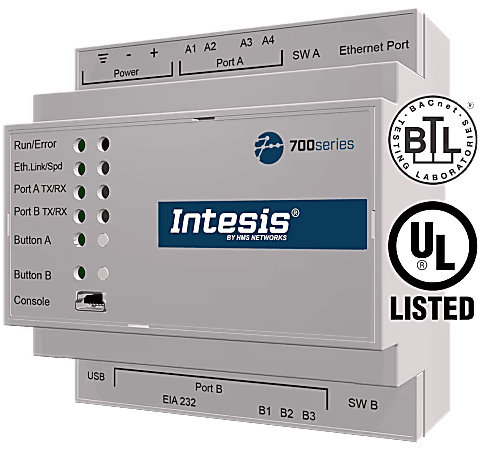

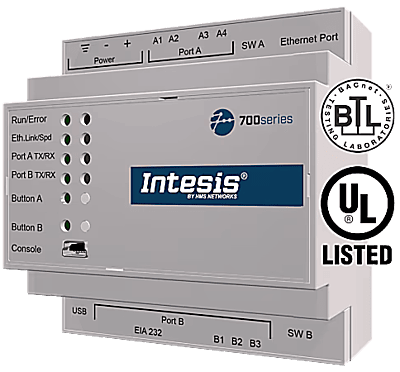

Intesis Modbus TCP & RTU Master to BACnet/IP & MS/TP Server Application
£550.00 - £849.00
Tags:
Intesis Modbus TCP & RTU Master to BACnet/IP & MS/TP Server Application
Points
Choose Quantity
Product Details
Specifications

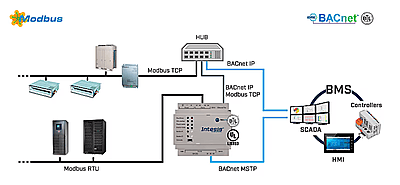

BACnet/IP client and MS/TP manager support Both BACnet/IP client and MS/TP manager are supported.
Easy integration with Intesis MAPS The integration process is quickly and easily managed using the Intesis MAPS configuration tool.
Commissioning-friendly approach with Intesis MAPS
Templates can be imported and reused as often as needed, significantly reducing commissioning time.
BACnet Advanced features - calendars, schedules…
BACnet's advanced features, such as calendars, trend logs, schedules, and more, are available.
32 RTU devices per port with no repeater (255 max)
The gateway supports up to 32 Modbus devices per RTU node (without repeater) and up to 255 in total.
Configuration tool and gateway automatic updates
Both the Intesis MAPS configuration tool and the gateway's firmware can receive automatic updates.

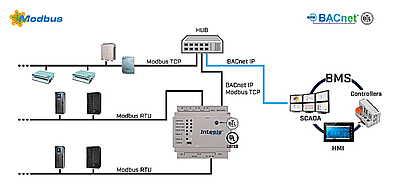

Two Modbus RTU lines for BACnet/IP integration
Two independent Modbus RTU ports are available for BACnet/IP integrations. Template download/generation for Modbus products Modbus device templates can be generated,
Specification
- Supply voltage rangeFor DC: 9 .. 36 VDC, Max: 260 mA, 2.4 W For AC: 24 VAC ±10 %, 50-60 Hz, Max: 100 mA, 2.4 W Recommended voltage: 24 VDC, Max: 100 mA
- Speed (Ethernet)10, 100 Mbit/s
- Connector (Ethernet)RJ45
- Net Width (mm)108
- Net Height (mm)58
- Net Depth (mm)56.5
- Net Weight (g)194
- Operating Temperature Celsius Min-10
- Operating Temperature Celsius Max60
- Housing MaterialsPlastic
- Warranty (years)3 Years
