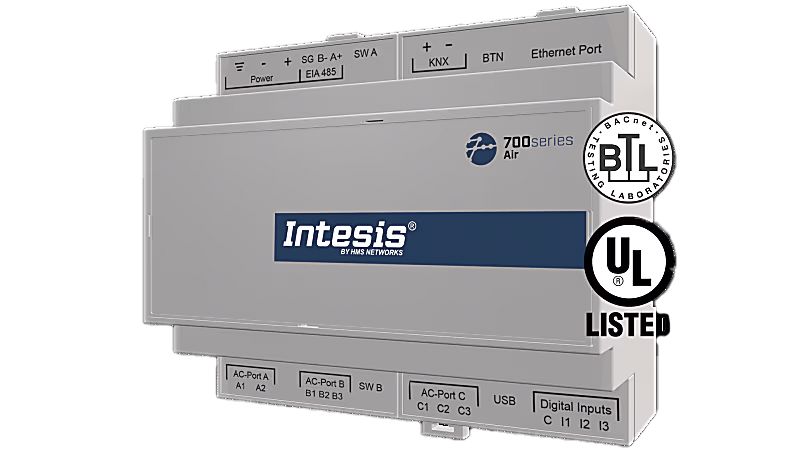

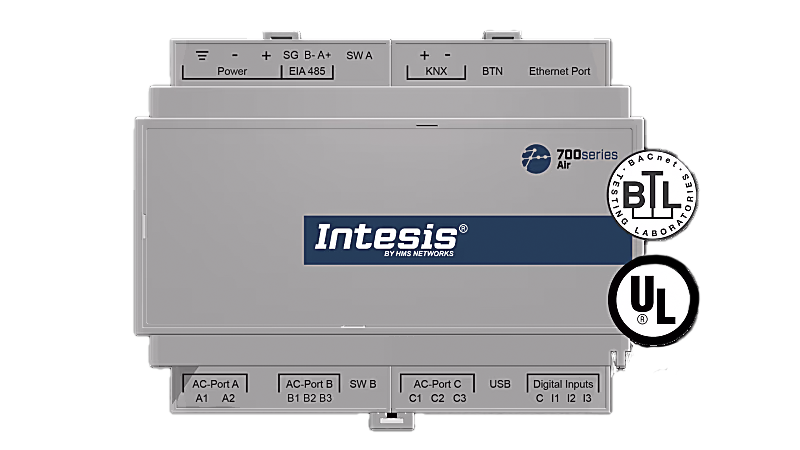

Intesis multi-brand AC interface with KNX, Serial and IP support
£885.50 - £2,989.80
Tags:
This Intesis gateway enables seamless integration of advanced HVAC systems with BACnet/IP and MS/TP networks, facilitating efficient control and monitoring through Building Management Systems (BMS). It enhances system interoperability and centralized management, improving energy efficiency and comfort.

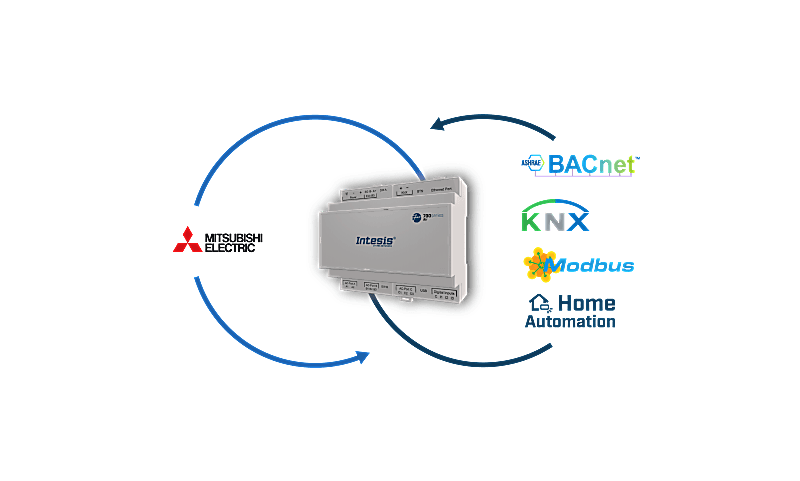

Compatible with various HVAC brands, including Daikin, Panasonic, Midea, Hisense, Mitsubishi Electric, Bosch, and Samsung, this solution ensures smooth communication between HVAC systems and automation platforms. It supports multiple indoor units, optimizing control and monitoring across different environments.
Size
Choose Quantity
Product Details
Specifications
Protocol Compatibility:
Supports BACnet/IP and MS/TP networks for seamless communication with a variety of BMS platforms.
Direct System Integration:

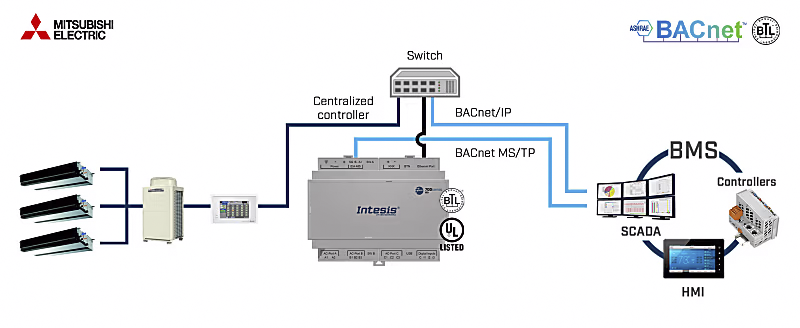

Connects directly to the outdoor unit's communication bus for centralized access to all connected indoor units.
Energy Monitoring:
Includes a Power Estimation Algorithm to provide detailed insights into the energy consumption of each indoor unit.
Flexible Scalability:
Offers licensing options to support small to large installations, accommodating up to 15, 50, or 100 indoor units based on project requirements.
User-Friendly Setup:
Simplifies configuration with the Intesis MAPS tool, enabling quick scanning and automatic detection of connected units.
Versatile Application:
Compatible with a wide range of HVAC unit types, including VRF, HRV, Hydro Boxes, Air Curtains, control boxes, heating systems, and split units.
This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precauons should always be taken to prevent electrostac discharge to the unit. When working inside an enclosure (e.g., making adjustments, seng switches, etc.), typical an-stac precauons should always be followed before touching the unit.
Specification
- Net Width (mm)106
- Net Height (mm)58
- Net Depth (mm)90
- Net Weight (g)310
- Operating Temperature Celsius Min0
- Operating Temperature Celsius Max60
- Housing MaterialsPlastic
- Warranty (years)3 Years
