Milesight AM103 LoRaWAN Air Quality Sensor
Milesight AM103 LoRaWAN Air Quality Sensor
Milesight AM103 LoRaWAN Air Quality Sensor

Milesight AM103 LoRaWAN Air Quality Sensor

£135.00
Tags:

Milesight AM103 LoRaWAN Air Quality Sensor
3-in-1 LoRaWAN air quality sensor with E-ink screen - CO₂, temperature and humidity on a 2.13-inch E-ink display with emoticon and traffic-light indication. HIGHLIGHTS
  • NDIR CO₂ (400-5,000 ppm), temperature and humidity.
  • 2.13-inch E-ink screen with emoticon indication and CO₂ trend.
  • Traffic-light LED shows air quality at a glance.
  • Battery life up to 4.5 years (SF7) / about 3 years (SF10).
  • Stores 640 records and retransmits after outages.
  • One-touch NFC setup; calibration and threshold alarms.
  • Wall mount with 3M tape or screws.
  • No screen needed? See the AM103L.



Part Number
AM103-868M
Choose Quantity
+ Add to Cart
Product Details
Specifications
Milesight AM103 LoRaWAN Air Quality Sensor

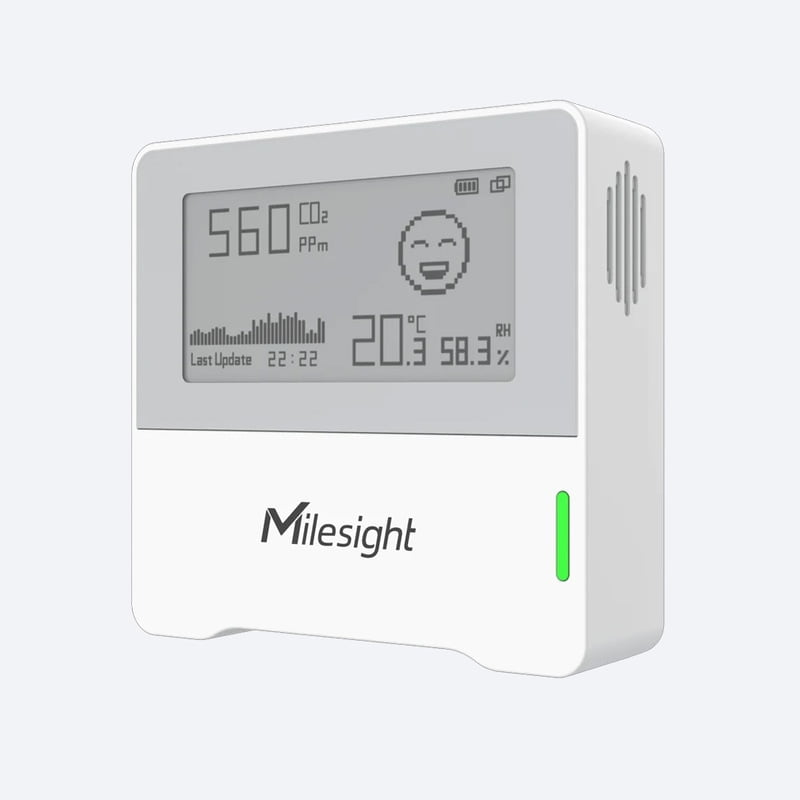

A compact 3-in-1 LoRaWAN® indoor air quality sensor that measures CO₂, temperature and humidity and shows them on a 2.13-inch E-ink screen. High CO₂ impairs concentration and decision-making, so use it to drive ventilation in offices, classrooms and meeting rooms, with no wiring.

Sensors
  • CO₂ (NDIR): 400-5,000 ppm, ±(30 ppm + 3% of reading), 1 ppm resolution
  • Temperature: -20 to +60°C, ±0.2°C (0 to 60°C), ±0.3°C (-20 to 0°C)
  • Humidity: 0-100% RH, ±2% RH
Display
  • 2.13-inch black-and-white E-ink screen with emoticon indication and enhanced data display

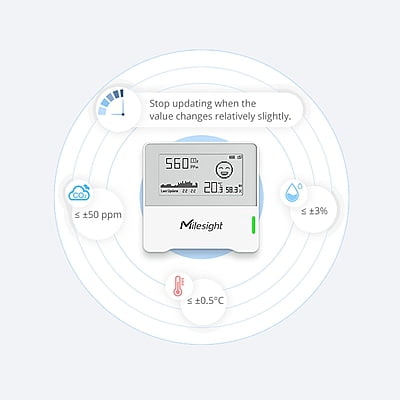

  • Smart screen mode: the screen only refreshes when a reading changes (CO₂ more than ±50 ppm, temperature more than ±0.5°C or humidity more than ±3%), to save power
  • The screen switches off automatically outside 0 to 40°C
  • Traffic-light LED status indicator
Reliable data
  • Stores 640 records on the device, with data retrieval and retransmission after a network outage
  • CO₂ calibration and threshold alarms
Power and setup

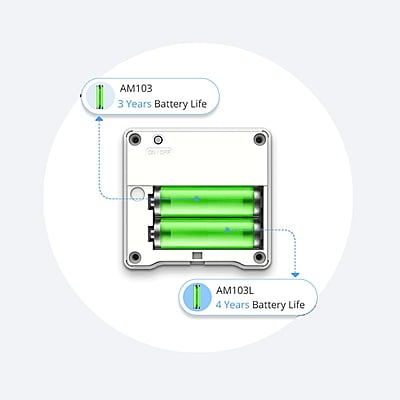

  • 2 × 2700 mAh ER14505 Li-SOCl2 replaceable batteries: up to 4.5 years (SF7) or about 3 years (SF10, EU868), at a 10-minute interval
  • One-touch NFC setup with the Milesight ToolBox app, or by downlink
  • Works with standard LoRaWAN® gateways and network servers, and the Milesight Development Platform
Installation
Wall mounting with 3M tape or screws. 68 × 65 × 20.5 mm, 182.5 g with batteries, IP30.

Don't need the screen? The AM103L has the same sensors and a longer battery life. Only need temperature and humidity? See the AM102.

EU868 version.
Specification
  • Expected Battery Life
    Up to 4.5 years (SF7) / 3 years (SF10)
  • Frequency
    CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
  • Tx Power
    16dBm(868 MHz)/22dBm(915 MHz)/19dBm(470 MHz)
  • IP Rating
    IP30
  • Sensitivity
    -137dBm @300bps
  • Mode
    OTAA/ABP Class A
  • Configuration
    Mobile App via NFC
  • Power Supply
    2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
  • Temperature Range
    -20 to +60°C
  • Temperature Accuracy
    ±0.2°C (0 to 60°C), ±0.3°C (-20 to 0°C)
  • Display
    2.13-inch E-ink screen + traffic-light LED
  • Dimensions (mm)
    68 × 65 × 20.5
  • Weight
    182.5 g (with batteries)
  • Certifications
    CE, FCC, ISED, RoHS
  • Humidity Sensor
    0-100% RH, ±2% RH
  • CO2 Sensor
    NDIR, 400-5,000 ppm, ±(30 ppm + 3%)
  • Data Storage
    640 records, with retransmission
