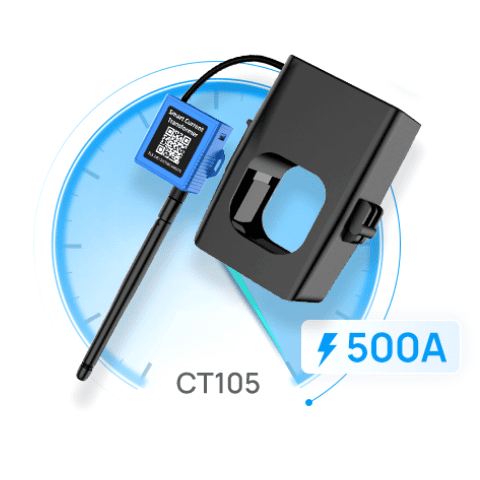

Milesight CT105-868M Smart Current Transformer

Milesight CT105-868M Smart Current Transformer

£79.00
The Milesight CT105 is a LoRaWAN wireless device that derives power directly from the measured circuit. It can calculate accumulated ampere-hours in real-time, allowing for precise monitoring of current consumption. With the Milesight IoT Cloud solution, the CT105 can be monitored remotely via the mobile app or web page. The device lets you set minimum and maximum current thresholds, providing alarms when these thresholds are breached, as well as instant alerts if the current exceeds the rated limit. You're able to easily disassemble this device, allowing for easy installation in tight spaces.

Comes with a 500A Current Capacity.


Part Number
CT105-868M
Choose Quantity
+ Add to Cart
Specifications
Specification
  • IP Rating
    IP30
  • Sensitivity
    -137dBm
  • Mode
    OTAA/ABP Class A
  • Configuration
    NFC Configuration via Mobile App
  • Sampling Frequency
    3.3 kHz
  • Working Frequency
    50~60 Hz
  • Rated Primary Current
    500A
  • Frequency
    CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
  • Tx Power
    16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm(470 MHz)
  • Operating Temp
    -20°C~70°C
  • Storage Temp
    -25°C~80°C
