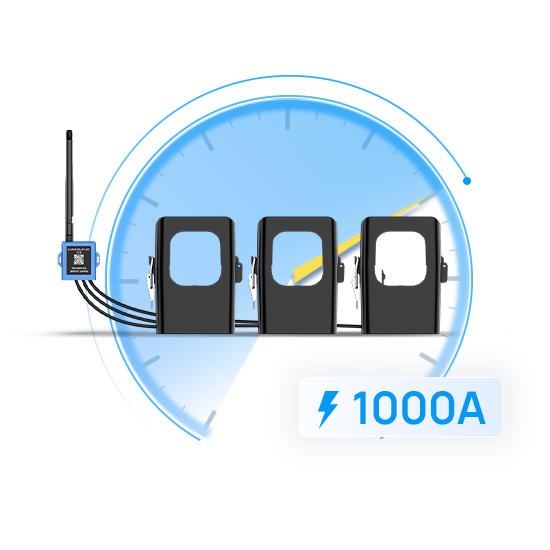

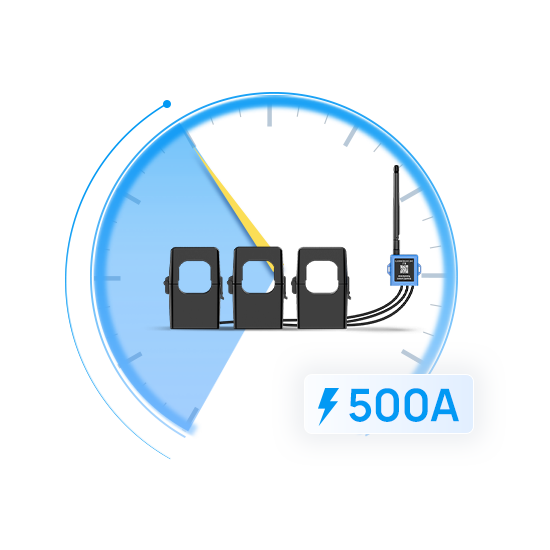

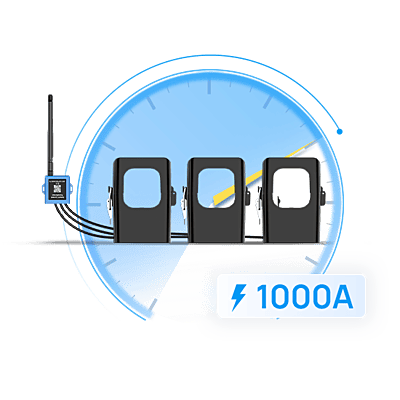

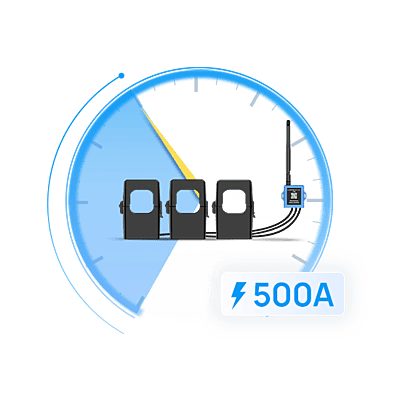

Milesight CT3xx Current Transformer
£155.00 - £244.00
The Milesight CT3xx series is a smart current transformer designed for efficient energy management and real-time electrical monitoring. Featuring a non-invasive installation, this device eliminates the risk of circuit damage and power interruptions. It is self-powered, deriving energy directly from the measured circuit, and supports LoRaWAN® wireless technology for seamless, long-range communication.
Capacity
Choose Quantity
Product Details

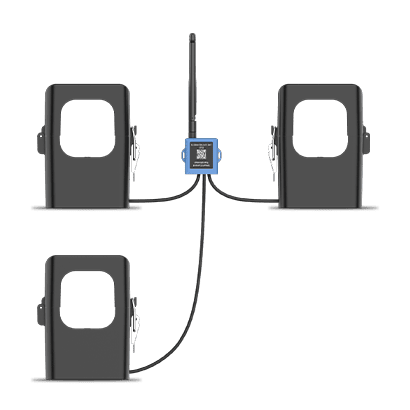

Multi-Target Current Measurement
With a one-to-three design, the current transformer can be applied to measuring up to three different objects' electricity.
Non-Invasive Installation
The user-friendly current clamp probe is designed for non-invasive and quick installation, eliminating the risk of circuit damage or power interruptions.
Self-Powered: No Batteries, No Limits
The CT3xx is designed to derive power directly from the measured circuit, eliminating the constraints of batteries while ensuring seamless operation
Superior Accuracy
Outperform other competitors on the market, CT3xx boasts an impressive high sampling frequency of up to 3.3kHz, guaranteeing unparalleled accuracy and detail.
Efficient Energy Tracking At One-Second Interval
Calculate accumulated ampere hour in real-time at a one-second interval. This enables precise current consumption monitoring and analysis, achieving goals such as energy conservation and reduced operational costs.
Current Threshold Alert
Set minimum and maximum current thresholds, and receive instant alarms upon threshold triggers for swift action.
Over-Current Alert
Receive instant alerts when the actual current exceeds the rated limit, accompanied by a smart LED indicator flashing every 2 seconds for swift visual confirmation of the alarm status.
Temperature Threshold Alert
An external wire temperature sensor is available, triggering alerts when the wire temperature reaches a set threshold.
Cable-Free Deployment
Say goodbye to the hassle of wires. This simplifies the installation process, reduces labor costs, and allows for more flexible placement.
Efficient LoRaWAN® Transmission
By utilizing the global IoT standards of LoRaWAN®, the CT3xx enables seamless communication from electrical distribution panels across multiple stories of commercial and industrial buildings. It ensures uninterrupted wireless transmission which is also featuring strong stability, penetrability, and compatibility.
Multiple Antenna Types
CT3xx is equipped with a high-gain antenna, ensuring stable signal transmission. And the magnetic antenna is also offered as an optional choice to meed your specific needs.
