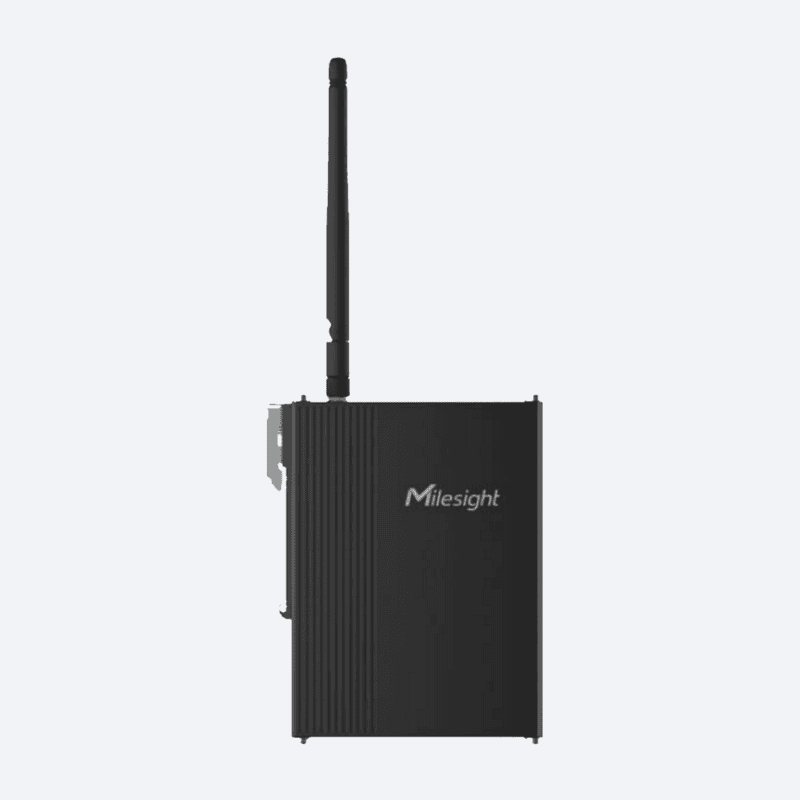

Milesight UC300 LoRaWAN IoT Controller
£129.00
Tags:
- Easy to connect with diverse wired devices through DI/DO/AI/RS232/RS485/PT100RTD input interfaces
- Multiple triggering conditions and actions
- Embedded watchdog for device working stability
- Industrial metal case design with wide operating temperature range
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Part Number
UC300-868M Choose Quantity
Product Details
Specifications
UC300 series is an IoT controller used for remote control and data acquisition from a variety of devices. It contains multiple I/O interfaces including analog input, digital input, relay output, serial port, PT100 RTD input, which support remote device data transmission via LoRaWAN®.
The UC300 series supports multiple trigger conditions and actions which can work autonomously even when the network is unavailable. Combining with Milesight IoT Cloud solution, it can monitor and control remote devices via web server or mobile App easily. Adopting industrial design and IP30 metal case, UC300 is widely used in indoor applications like smart factory, building automation, etc.
After registered you can send downlink payload messages to DO1 on port 85 (Can be changed using Toolbox) :
- Close relay: 070100FF
- Open relay: 070000FF
Specification
- TechnologyLoRaWAN®
- Interface Type3.5 mm Terminal Block
- Configuration Port1 × Type-C
- LED Indicator1 × System, 1 × ACT
- ModeOTAA/ABP Class C
- Port1 × RS232 + 1 × RS485
