Milesight VS341 LoRaWAN Desk & Seat Occupancy Sensor
£95.00
Tags:
Milesight VS341 LoRaWAN Desk & Seat Occupancy Sensor
Based on the dual-technology of PIR and thermopile, VS341 is designed for bringing higher accuracy and quick occupancy status detecting for more specific applications.
- LoRaWAN® Wireless Deployment.
- High Precision & Speed Dual-Technology.
- Up to 98% Ultra-High Accuracy.
- 100% Anonymous Detection.
- Ultra Low Latency Gains Quick Response.
- Adjustable PIR Angles for Flexible Performance.
- Tiny and Non-Invasive Design.
- Unique Milesight D2D Boost Communication.
Part Number
VS341-868M Choose Quantity
Product Details
Specifications
Milesight VS341 LoRaWAN Desk & Seat Occupancy Sensor

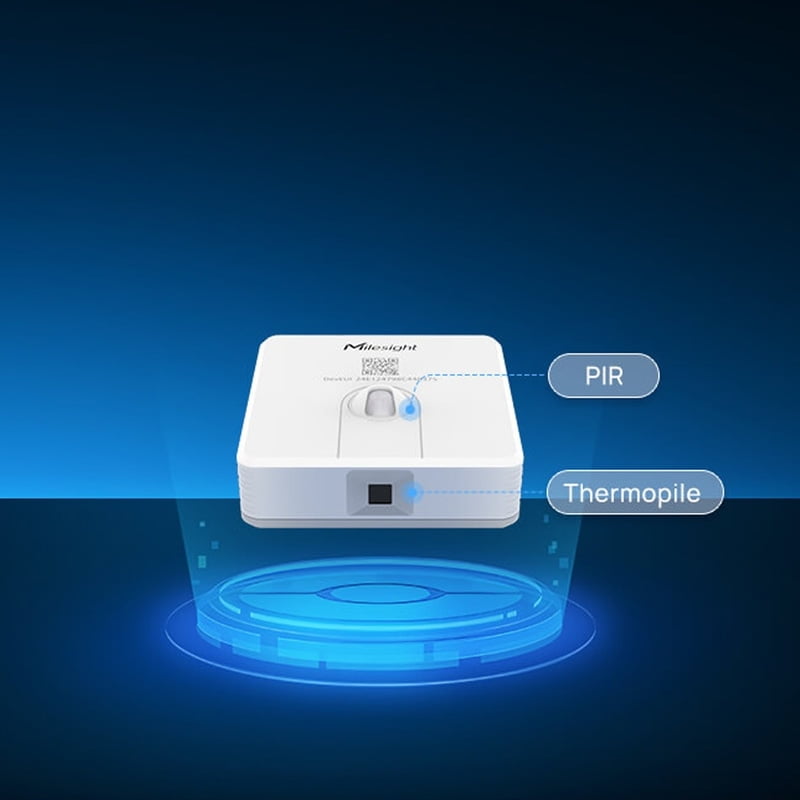

Dual-Technology of PIR & Thermopile
VS341 employs both highly sensitive PIR and thermopile sensors to accurately detect occupancy. The double detection mechanism fully captures the motions and temperature variations in its target areas and contributes to trustworthy results.
Make Desk & Seat Occupancy Easy
The sensor's impressive desk & seat occupancy detection capability frees up human resources enabling efficient management.
LoRaWAN® Wireless Deployment
Easy and convenient wireless deployment dispenses with being perplexed by network connection. The benefits of LoRa technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.
98% Industry Leading Accuracy
Based on dual technology, the sensor is capable of reaching an up to 98% high accuracy. It satisfies general requirements and further makes accurate detection possible, beating the most similar products.
Timely Response with Low Latency
The sensor can process rapidly to detect the status of occupied reaching 13s and not occupied reaching 60s, bringing near real-time performance. It is valuable for effectiveness-oriented applications to gain fast responses and take timely actions.
Adjustable Detection Angles
The target areas can be varied as appropriate. To avoid unnecessary detection and focus on the aim regions, the sensor is equipped with 5 different covers, making it preferable for detecting different table and desk occupancy with various ranges in different scenarios.
5 Years Long Service Life
Based on the low power consumption LoRaWAN®, the sensor can maintain a long battery life of 5 years with a frequent report rate. It is ideal for covering most user demands in different applications.
Energy-Saving Smart Control
The exclusive Milesight LoRa®-based protocol allows the sensor to easily communicate with other Milesight LoRaWAN® devices without a gateway within 1 second. It can also detect occupancy status to control the DS3604 E-link IoT Display, providing a convenient indication of workstation availability.
Easy and Fast Deployment
The thin-and-light design and peel-and-stick mounting make it convenient for bulk deployment. It can be applied in any application with even a large amount. Not much energy is needed and the deployment can be easily done.
Installation
- 3M tape mounting.
- Screw mounting.
Specification
- Expected Battery Life5 Years
- FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
- Tx Power16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz)
- IP RatingIP30
- Sensitivity-137 dBm
- ModeOTAA/ABP Class A
- Horizontal Detection Area107 °
- Vertical Detection Area107 °
- Detection Distance1m
- ConfigurationMobile App via NFC
- Power Supply1 x 4000 mAh ER18505 Li-SOCL2 Battery
