Milesight WS203 Motion, Temperature & Humidity Sensor
£52.00
Tags:

Motion & TH Sensor - Bringing Comfort in an Energy-Saving Way.
- Sensitive Motion Detection.
- Adjustable Detection Angles.
- High-Precision Temperature and Humidity Detection.
- High Data Integrity with Storage and Retransmission.
- Milesight D2D Communication.
- Ultra-Low Power Consumption.
- Easy Deployment and Installation.
Part Number
WS203-868M Choose Quantity
Product Details
Specifications
Milesight WS203 Motion, Temperature & Humidity Sensor

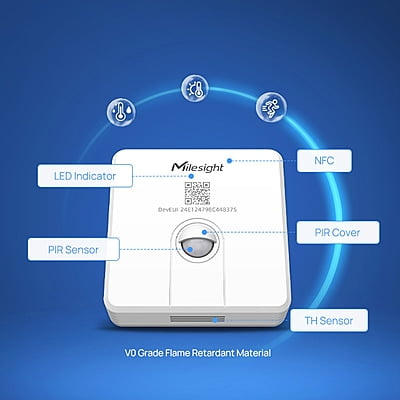

Ultimate Motion, Temperature and Humidity Sensor
WS203 is a wireless environmental monitoring sensor detecting the motion of humans or animals, surrounding temp and humidity. It ensures the indoor environment at a preset comfort level via pairing with HVAC system if motions are being detected, which is a huge energy saver and brings much comfort.
Sensitive Motion Detection
WS203 can detect motions of humans or animals Sensitively at wide coverage up to 120° horizontal and 100° vertical within 6 meters based on passive infrared (PIR).
Adjustable Detection Angles
The detection range of the PIR sensor in WS203 could be adjusted via different standard PIR covers to adapt to various detection environments.
High-Precision Temperature and Humidity Detection
Built-in high-precision TH sensor ensures accurate monitoring of temperature and humidity in the air, detecting changes in real-time.
High Data Integrity with Storage and Retransmission
- Temperature
- Range: -20°C ~ +60°C
- Accuracy: ±0.2°C
- Resolution: 0.1°C.
- Humidity
- Range: 0% ~ 100% RH
- Accuracy: ±2% RH
- Resolution: 0.5% RH
WS203 can store up to 1000 sets of historical data records with time stamps. When the connection fails, WS203 will continue to collect and store environment data. Once reconnected, the data collected during that period will be retransmitted to the gateway, thus avoiding data loss.
Milesight D2D Communication
Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
Ultra-Low Power Consumption
- Lower Latency
- Less than 1 Second Response Time
- Secure Transmission
- Reduce Investment Cost

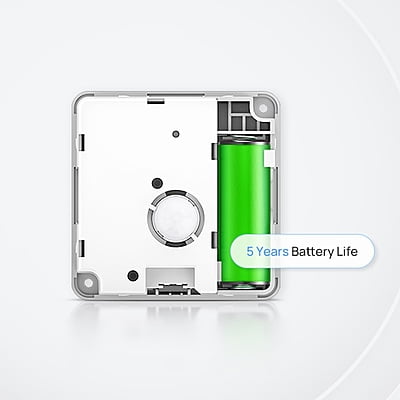

Based on the low power consumption LoRaWAN®, WS203 can maintain a long battery life of 5 years with a built-in 4000 mAh ER18505 Li-SOCL2 battery and report at a certain rate.

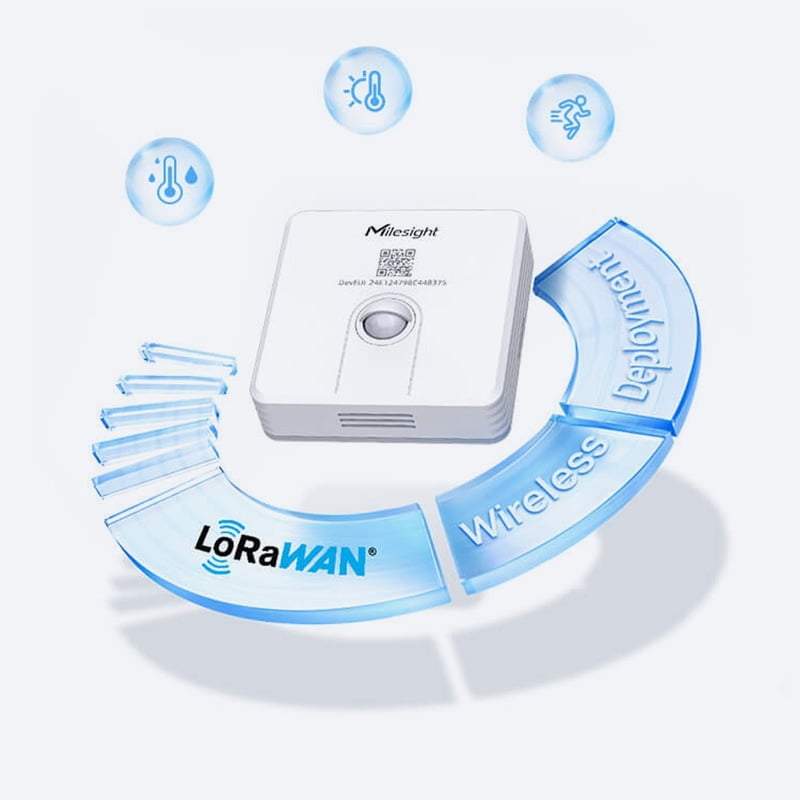

LoRaWAN® Based

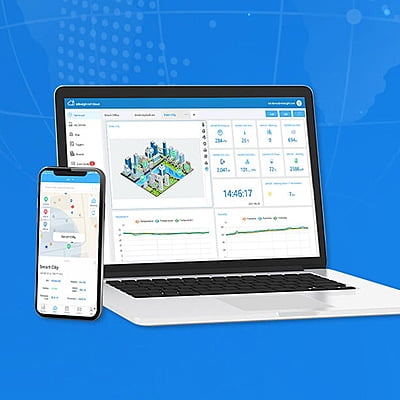

Cloud Data Management Milesight IoT Cloud
Typical Application Scenarios
Installation
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
- Data Visualization Dashboard: All figures in a glance.
- Automatic Triggers: Interactive collaboration with Milesight IoT sensors to realize scene-based automation.
- Regular Reports & Real-Time Alerts: Data-based insights.
- Android & iOS App: Manage devices at your fingertips.
- Smart Farming: WS203 makes sure animals can live comfortably and get sick less through temp and humidity control.

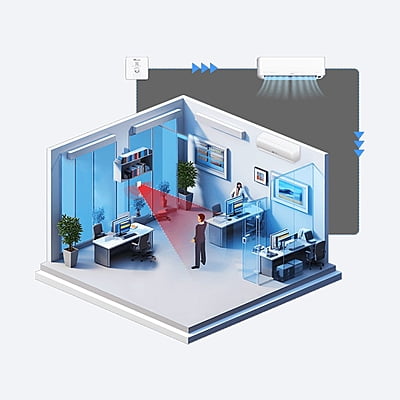

- Smart Office: WS203 ensures humans' wellness via coordinating with HVAC system when motions are detected.
- Smart Hospital: WS203 guarantees the health of patients by helping indoors temp and humidity control.
- 3M Tape Mounting.
- Wall Screw Mounting.

Specification
- Expected Battery Life5 Years
- FrequencyCN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
- Tx Power16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz)
- IP RatingIP30
- Sensitivity-137 dBm
- ModeOTAA/ABP Class A
- Horizontal Detection Area120 °
- Vertical Detection Area100 °
- Detection Distance6m
- ConfigurationMobile App via NFC
- Power Supply1 x 4000 mAh ER18505 Li-SOCL2 Battery
