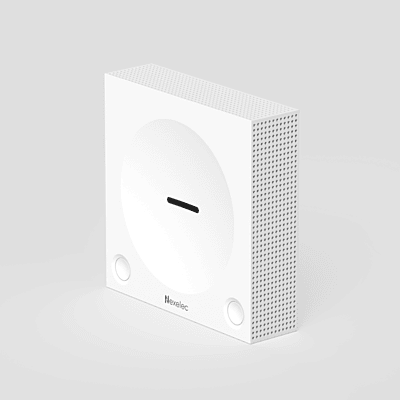

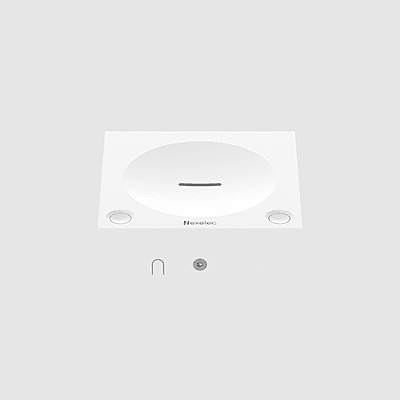

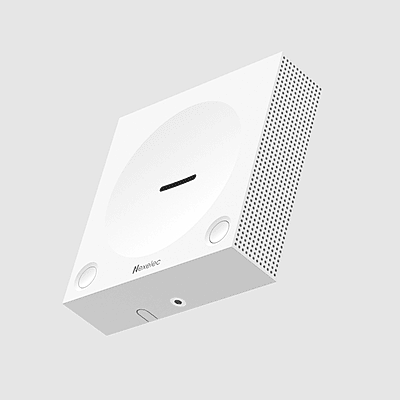

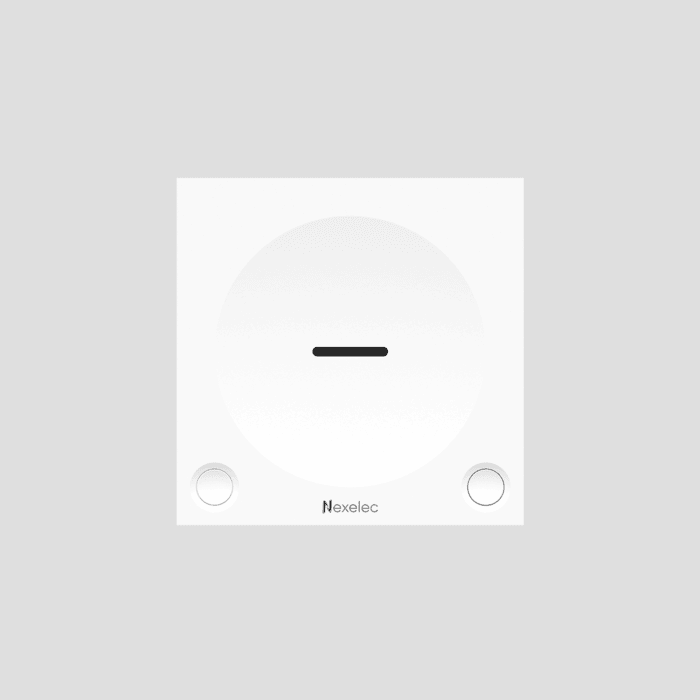

Nexelec RISE 3-in-1 ambient sensor
£161.00
3-in-1 Smart sensor :
- CO2
- Temperature
- Humidity
Connected
Remote reading of measurements. All information is available in a secure cloud space
Monitors indoor air quality
The CO2 sensor analyzes the atmosphere every 5 minutes and informs if it is necessary to ventilate or close the window
- Very low power consumption for sensors and on-board electronics
- Includes 2 SAFT 2600 mAh high-density replaceable batteries
RISE analyzes CO2 levels every 5 minutes and visually alerts occupants when it’s time to ventilate to renew indoor air.
To avoid any risk of erroneous measurements, particular attention has been paid to integrating the temperature and humidity sensors into the product. Rigorous testing and strict validation protocols guarantee operation in extreme operating conditions ranging from -20°C to +50°C and from 0 to 99% ambient humidity.
Part Number
X520LS Choose Quantity
Product Details
Measurement accuracy
Consistent, reliable measurements with no drift over time
Easy to install
Free-standing, wall-mounted or for single-user flush-mounting boxes
Easy to configure
Simplified product settings from a smartphone, via contactless NFC technology
High-performance battery
Operates on replaceable lithium batteries. Up to 20 years* of autonomy
Measurement accuracy
Calibration certificate issued by a COFRAC-accredited metrology laboratory. The CO2 sensor analyzes the air every 5 minutes and automatically recalibrates every week (manual calibration possible).
Regulatory compliance
Take control of your environment by ensuring healthy indoor air. Direct-reading sensor compliant with French and international standards for measuring CO2 concentration
Indicator light visible from over 10 metres

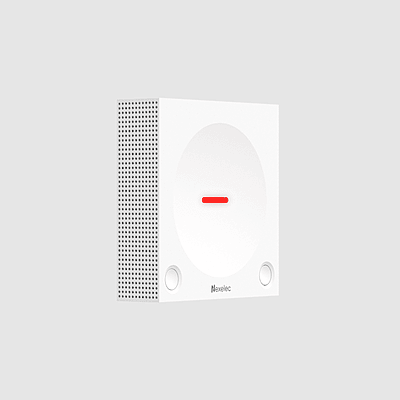

The powerful Green / Orange / Red indicator changes with the CO2 level. ppm" trigger threshold can be reconfigured locally via wireless NFC or remotely via LoRaWAN
270° Air
Numerous side openings for better ambient air analysis
Signal tone
An audible signal notifies occupants if Indoor Air Quality deteriorates. Signal can be activated/deactivated locally or remotely
Saves measured data
Built-in micro SD card. Up to 10 years of sensor measurements stored in memory. Useful in the event of a power cut
Long-term measurement reliability
Guaranteed consistency and accuracy, with no measurement drift over time
Regulatory compliance
Sensor calibration certificate issued by a COFRAC-accredited independant metrology laboratory
3M adhesive fastener
Allows quick installation without screws or plugs. Avoids drilling into walls where asbestos, pipes or cables are present
Easy to install
Free-standing, wall-mounted or for single-user flush-mounting boxes
Anti-theft protection
Lockable mounting base reduces risk of sensor removal
Anti-tear detection
Triggers an alert message if the product is removed from its mounting base
Multi-band LoRaWAN transceiver
With the Nexelec TOUCH application and NFC technology, you can quickly and easily configure the product to transmit on the frequency of your choice: Europe (868MHz), USA (915MHz), Australia (923MHz), etc.
No more data loss!
Historical Data mode + Redundancy function: measurements can be grouped in a single LoRaWAN frame to limit the number of radio transmissions and are sent 3 times to maximize their reception by the network gateway.
Optimized PCB radio antenna
Designed to ensure reliable radio connectivity, even in harsh environments, while limiting power consumption to extend battery life
Enhanced cyber security
Data transmitted by the product is secured from end to end using double AES128 encryption.
Measures room parameters with one click
Need to take an immediate measurement and share the data? It’s now possible, and easy to do, thanks to the button on the front of the sensor.
