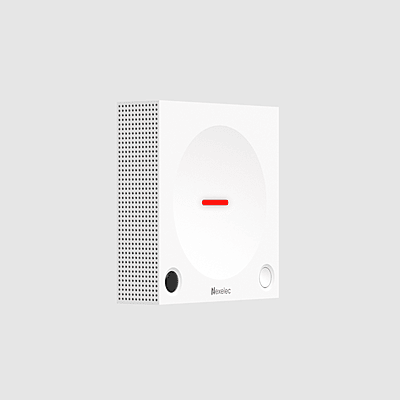

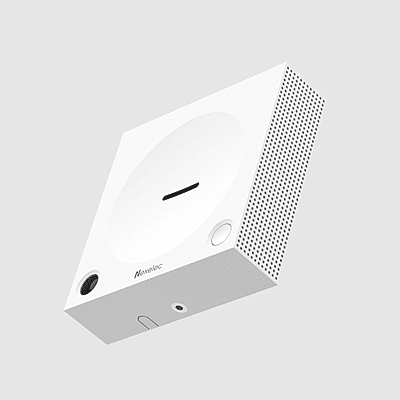

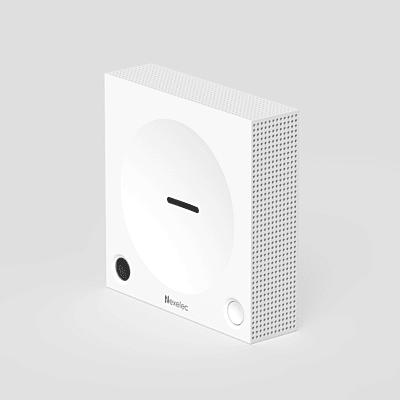

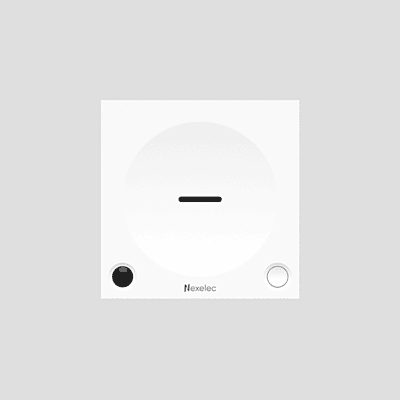

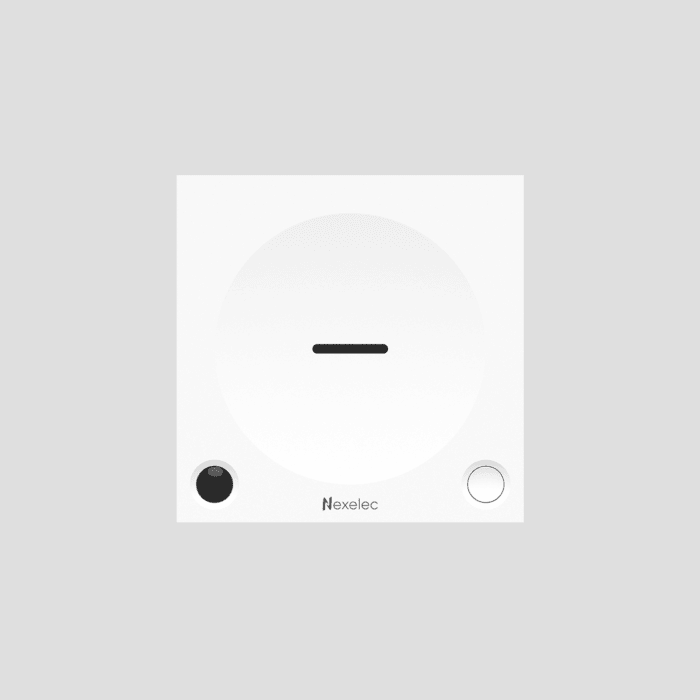

Nexelec SIGN 7-in-1 room sensor
£179.00
7-in-1 Smart sensor
- CO2
- VOC
- Temperature
- Humidity
- Motion
- Luminosity
- Noise
Intelligent and connected
On-board data analysis algorithm. Remote reading of measurements. All information is available in a secure cloud space
Design
Facilitates product acceptance by occupants
With its 3 dedicated sensors, SIGN offers lighting and energy optimization, acoustic monitoring, space and safety management, and automation scenario options. SIGN analyzes CO2 levels every 5 minutes and visually alerts occupants when it’s time to ventilate to renew indoor air.
- Very low power consumption for sensors and on-board electronics
- Includes 2 SAFT 2600 mAh high-density replaceable batteries
- Includes 1 USB-C socket if you want to power the product continuously without having to worry about replacing batteries
To avoid any risk of erroneous measurements, particular attention has been paid to integrating the temperature and humidity sensors into the product. Rigorous testing and strict validation protocols guarantee operation in extreme operating conditions ranging from -20°C to +50°C and from 0 to 99% ambient humidity
Part Number
X565LS Choose Quantity
Product Details
Measurement accuracy
Consistent, reliable measurements with no drift over time
Easy to install
Free-standing, wall-mounted or for single-user flush-mounting boxes
Easy to configure
Simplified product settings from a smartphone, via contactless NFC technology
High-performance battery
Operates on replaceable lithium batteries. Up to 20 years* of autonomy
270° Air
Numerous side openings for better ambient air analysis
Signal tone
An audible signal notifies occupants if Indoor Air Quality deteriorates. Signal can be activated/deactivated locally or remotely
iZiAiR assesses Air Quality
Our on-board algorithm simplifies the interpretation of the numerous data measured by the sensors. A useful and effective decision aid for healthier air
Saves measured data
Built-in micro SD card. Up to 10 years of sensor measurements stored in memory. Useful in the event of a power cut
Measurement accuracy
Calibration certificate issued by a COFRAC-accredited metrology laboratory. The CO2 sensor analyzes the air every 5 minutes and automatically recalibrates every week (manual calibration possible).
Regulatory compliance
Take control of your environment by ensuring healthy indoor air. Direct-reading sensor compliant with French and international standards for measuring CO2 concentration
Indicator light visible from over 10 metres
The powerful Green / Orange / Red indicator changes with the CO2 level. ppm" trigger threshold can be reconfigured locally via wireless NFC or remotely via LoRaWAN
Sound under control
Measures noise and identifies noise pollution. Helps preserve a calm and peaceful environment
Presence detection
The motion sensor detects people up to 6 meters away. Useful for lighting, security or temperature control
Measures ambient light
The brightness sensor measures the amount of light in the room. Ideal for controlling lighting or adjusting temperature more quickly according to sunshine levels
Long-term measurement reliability
Guaranteed consistency and accuracy, with no measurement drift over time
Regulatory compliance
Sensor calibration certificate issued by a COFRAC-accredited independant metrology laboratory

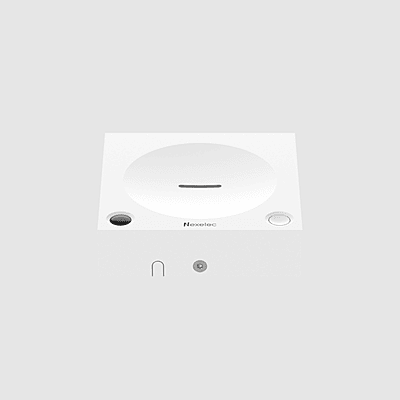

3M adhesive fastener
Allows quick installation without screws or plugs. Avoids drilling into walls where asbestos, pipes or cables are present
Easy to install
Free-standing, wall-mounted or for single-user flush-mounting boxes
Anti-theft protection
Lockable mounting base reduces risk of sensor removal
Anti-tear detection
Triggers an alert message if the product is removed from its mounting base
Multi-band LoRaWAN transceiver
With the Nexelec TOUCH application and NFC technology, you can quickly and easily configure the product to transmit on the frequency of your choice: Europe (868MHz), USA (915MHz), Australia (923MHz), etc.
No more data loss!
Historical Data mode + Redundancy function: measurements can be grouped in a single LoRaWAN frame to limit the number of radio transmissions and are sent 3 times to maximize their reception by the network gateway.
Optimized PCB radio antenna
Designed to ensure reliable radio connectivity, even in harsh environments, while limiting power consumption to extend battery life
Enhanced cyber security
Data transmitted by the product is secured from end to end using double AES128 encryption.
Measures ambient parameters with a single click
Need to take an immediate measurement and share the data? It’s now possible, and easy to do, thanks to the button on the front of the sensor.
SIGN is equipped with a Total Volatile Organic Compounds (TVOC) sensor based on highly sensitive MOx detection technology. This ensures reliable measurement even in damp and dusty environments.
Volatile Organic Compounds (VOCs) are highly volatile and easily dispersed in office or workshop atmospheres. VOCs can be harmful to health, and contribute to olfactory pollution.
SIGN allows you to manage ventilation in enclosed spaces and protect occupants’ health by limiting exposure to pollutants.
