RAK Wireless 8dBi Fiberglass Antenna Supports 858-878MHz
Non-returnable
£85.00
RAK 8dBi Outdoor LoRaWAN and Helium Antenna
FEATURES
- Frequency Range: 858~878 MHz
- Max Gain: 8.0 dBi
- VSWR: ≤ 1.5
- High efficiency
- Vertically polarized dipole
- Easy to mount with the included Installation kit
Part Number
915001 Choose Quantity
Product Details
Specifications
RAK 8dBi Outdoor LoRaWAN and Helium Antenna
This RAK wireless antenna is perfectly suited to our outdoor LoRaWAN gateways. At 1.3M long, and with a peak gain of 8 dBi, it provides great performance over long distances. The antenna is equally tuned for 868MHz, so it's suitable for use in Europe with the EU868 LoRaWAN band.

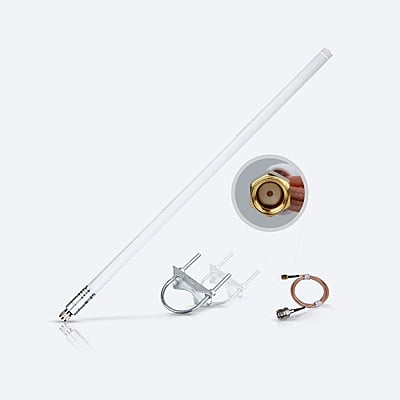

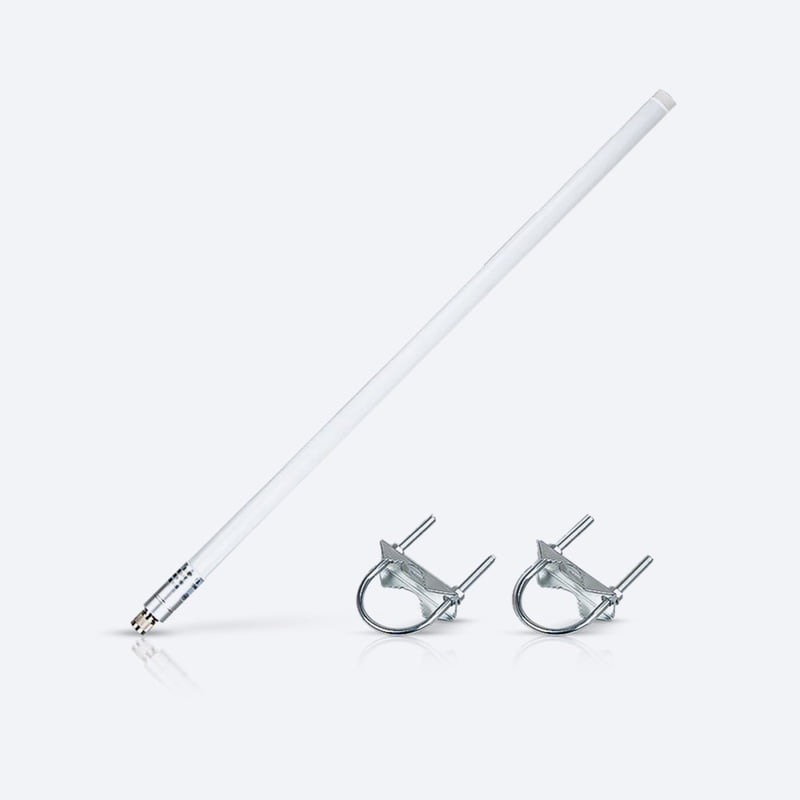

The antenna is supplied with a u-bolt mounting kit and 1M indoor RP-SMA cable so you're ready to install.
Specification
- Frequency range858 – 878 MHz for the EU 868 band
- VSWR≤ 1.5
- Impedance50 Ω
- Connector typeN-male
- Operation temperature (°C)-30° C to +65° C
- Beamwidth Horizontal360° omnidirectional
- Max Gain8 dBi
- PolarizationVertical
- Radome BodyWhite Fibreglass
- Height1300mm
- Diameter25mm
