RAK Wireless Lightning Arrestor
Non-returnable
£39.00
Tags:
RAK Wireless Lightning Arrestor
FEATURES
Connector Type: N-type male to N-type female
Impedance: 50 Ω
Frequency range: 0-2700 MHz
Power loss 0-2000 MHz: ≤ 0.2 dB
Ingress protection: IP67
Nominal discharge current In: 10 kA
Maximum discharge current Imax: 20 kA
Voltage protection Level Up: ≤ 1200 V
Part Number
910033 Choose Quantity
Product Details

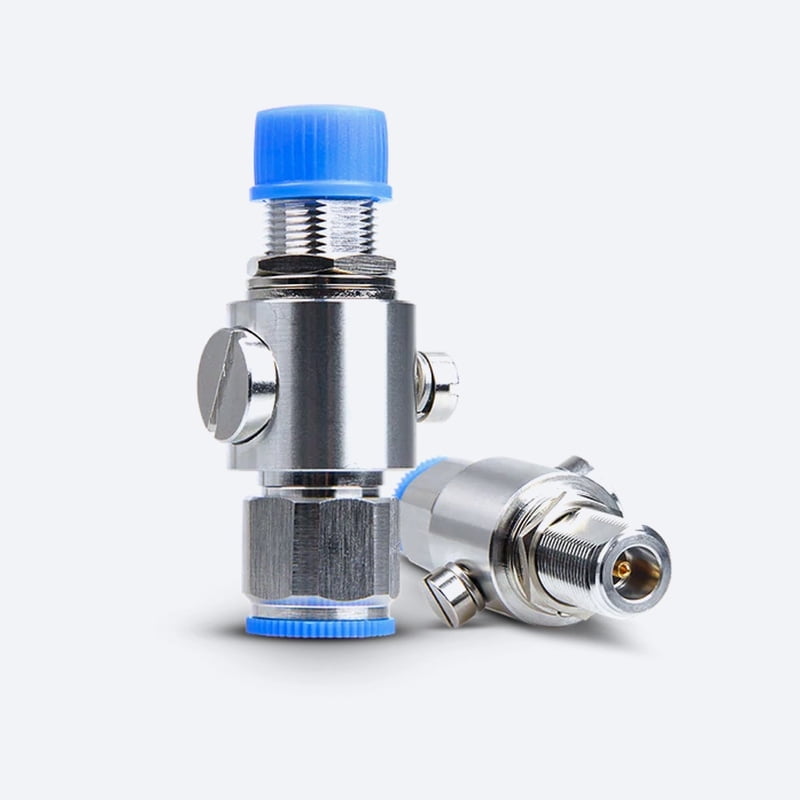

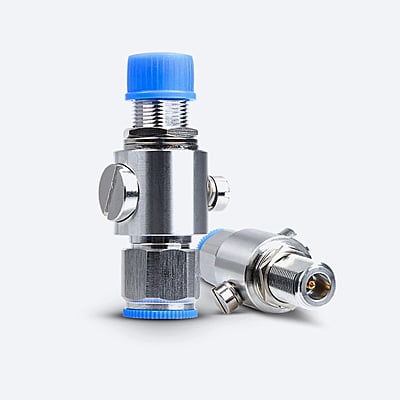

RAK Wireless Lightning Arrestor
This is a surge protective device for securing transceivers against over-voltage and surge current induced by bolts of lightning.
For the purpose of protecting the indoor equipment and circuitry connected to the LoRa gateway, you need to install an Ethernet Port Surge Protection Device (SPD).
RAKwireless recommends installing a lightning arrestor on all N-type antenna terminals including LoRa, LTE, and 2.4G Wi-Fi antennas. Please refer to the technical manual for wire type and gauge recommendations.
