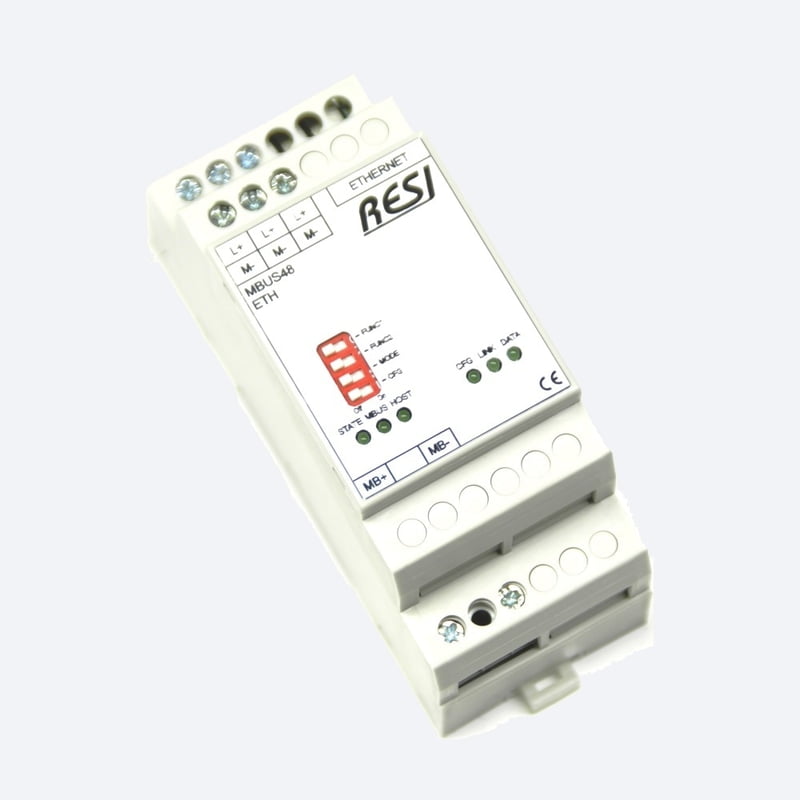

RESI-MBUS48-ETH M-Bus to Modbus

Ethernet gateway MBUS-MODBUS TCP Server, max. 48 meter, max. 1200 MODBUS register
  • Interface #1 - ETHERNET
  • Interface #2 - MBUS:48 meter
  • Protocol - MODBUS TCP Server

Choose Quantity
+ Add to Cart
Product Details
RESI-MBUS48-ETH M-Bus to Modbus

TCPConsisting of a MeterBus converter with Ethernet interface for 48 smart meter with MBUS interface, maximum 48 meter (=unit loads) and 1200 MODBUS registers, host communication via Ethernet with MODBUS/TCP server or ASCII text protocol, MBUS communication speed from 300bps to 57600bps, Mbus and Ethernet are galvanically isolated, configuration and test of the module via our free LIBRE OFFICE (R) based configurator software or with our free PC software MODBUSConfigurator

Technical Details
  • Size (LxBxH):35.8x90x58mm
  • Weight:90g
  • Power supply:12-48V=
  • Power consumption:8.4W
  • Housing:2MU
  • Mounting:mountable on 35mm EN50022 DIN rail
  • Terminals:Cable cross section: max. 2.5 mm², max. 14AWG Screw: M3 Tightening torque: max. 0.5Nm, max. 4.5 Lb-in
  • Certificate:CE
  • Protection class:IP20
  • TARIC number:8538 90 91
