SR MDS Ceiling Multi Sensor

SR MDS Ceiling Multi Sensor

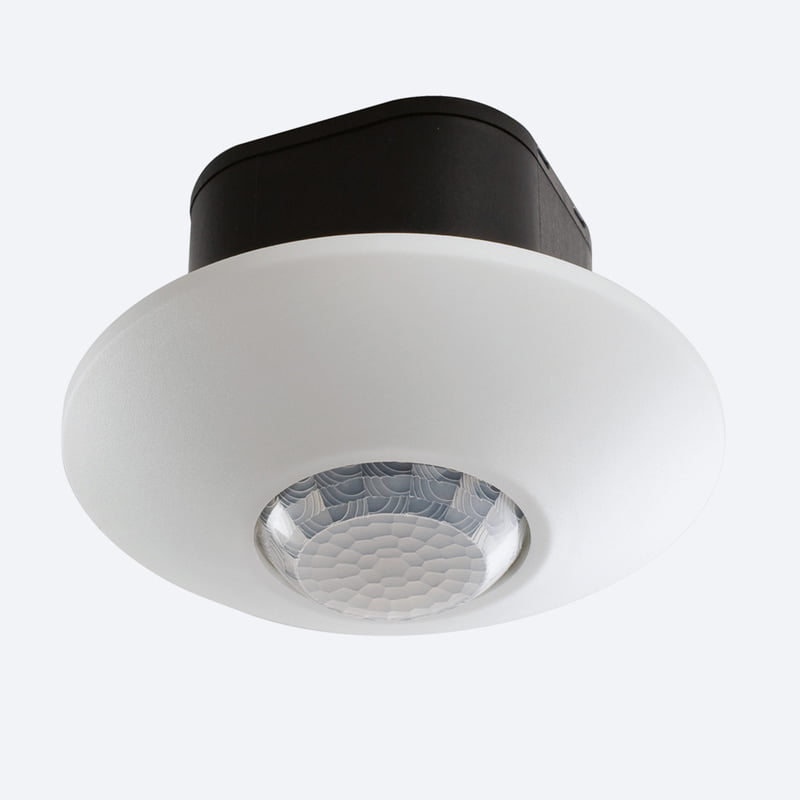

The SR MDS Ceiling Multi Sensor is a radio multi-sensor to measure light levels and detect motion .

The SR-MDS is typically ceiling-mounted and powered by 24 V so as to permit reliable operations in rooms with low light levels (e.g. basements).

Choose Quantity
+ Add to Cart
Product Details
SR MDS Ceiling Multi Sensor for the precise of light and motion rooms.

Technical Details
  • Measured values: luminosity, motion.
  • Radio technology: EnOcean (IEC 14543-3-10), STM.
  • Frequency: 868 MHz.
  • Power supply: SR-MDS:, flex. 15..240 V =/~, SR-MDS BAT: 3x battery LS14250, 3,6 V.
  • Power consumption: typ. 0,8 W (24 V =) | 1,2 VA (24 V ~).
  • Measuring range light: 0..510 Lux.
  • Measurement interval: WakeUp time = 100 sec. (default).
  • Dectection range: Ø=5 m at a sensor height of approx. 2,5 m.
  • Enclosure: ABS, pure white.
  • Protection (IP): IP20 according to EN 60529.
  • Ambient condition: -10..+50 °C, max. 85% rH non-condensing.
Appropriate for constant light control.
