SR65 DI
£90.48
Tags:

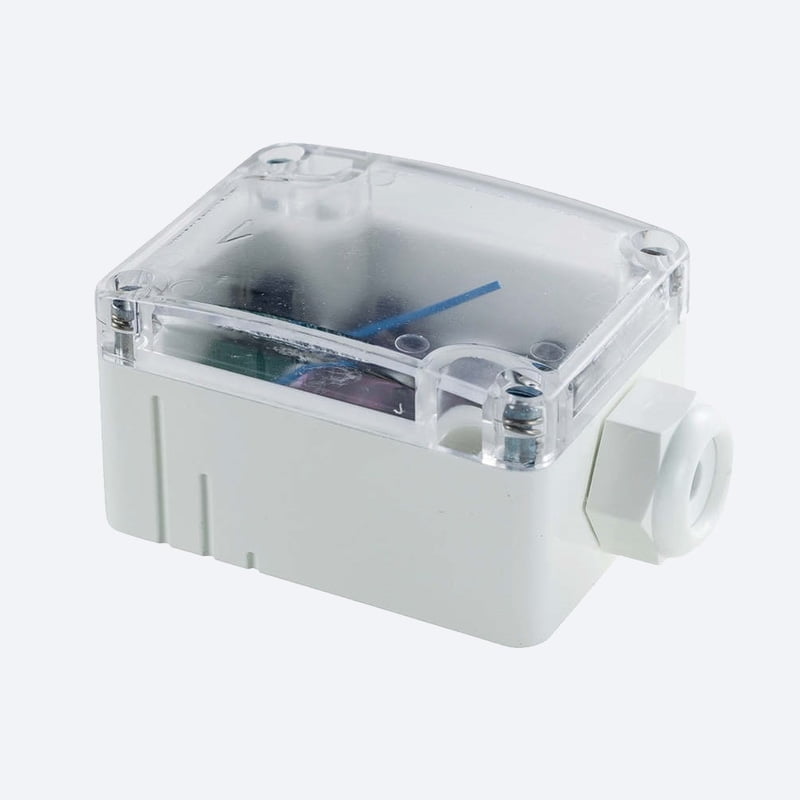

The SR65 DI is a wireless transmitter for the binary status of relay inputs. The status of the digital input is transmitted through radio to corresponding remote controllers in the EnOcean network or can be transferred through a gateway to any BUS network. It is often used as a push signal for night-time temperature reduction of heating controllers or ECO/comfort switching.
airConfig and a EnOcean USB transceiver (i.e. USB 300 ) will be mandatory if the default EEP and other settings need to be changed.
Choose Quantity
Product Details
- Radio technology EnOcean (IEC 14543-3-10)
- Frequency868 MHz, optional:, 902 MHz (Americas)
- Data transmission airConfig ready
- Power supply solar cell, internal super cap, battery LS14250 (3,6 V)
- Measurement interval WakeUp time = 100 sec. (default), heartbeat cycle = every 10th wakeup, configured via airConfigInputs1x input for floating contact, contact resistance max. 1000 Ω
- EnclosurePA6.6, pure white, cover PC, transparent, with quick lock screws
- Protection (IP)IP65 according to EN 60529
- Electrical connection terminal block, max. 1,5 mm²
- Ambient condition-25..+65 °C, max. 85% rH short term condensation
- Weight 110 g
- Delivery content1x battery LS14250
