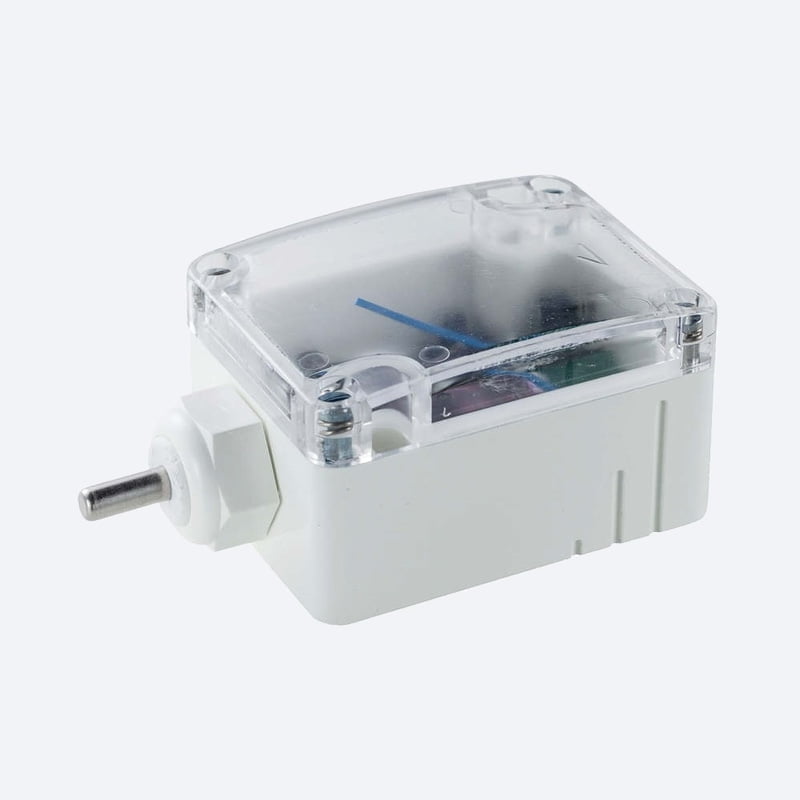

SR65 Outdoor Temperature Sensor
Non-returnable
£90.48
Tags:
Energy-harvesting wireless sensor for measuring temperature in outdoor areas or industrial environments (for example in cold stores, production halls and warehouses). The airConfig software can be used to parameterize the SR65 to customize measurement ranges, transmission intervals and wake-up times. When used in dark places (e.g. server rooms), a backup battery can be inserted.
airConfig and a EnOcean USB transceiver (i.e. USB 300) will be mandatory if the default EEP and other settings need to be changed.
Choose Quantity
Product Details
Technical Details
- Measured Values: Temperature.
- Radio technology: EnOcean (IEC 14543-3-10).
- Frequency: 868 MHz.
- Measurung Range: -20..+60 °C, optionally configurable via airConfig
- Accuracy: ±1% of measuring range (typ. at 21 °C)
- Measurement Interval: WakeUp time = 100 sec. (default), heartbeat cycle = every 10th wakeup, configured via airConfig
- Data transmission: airConfig ready.
- Power supply: Solar cell, internal super cap, optional: backup battery LS14250 (3,6 V).
- Enclosure: PA6.6, pure white, cover PC, transparent, with quick lock screws.
- Protection (IP): IP65 according to EN 60529.
- Pocket: brass, spring loaded sensor
- Ambient condition: -25..+65 °C, max. 85% rH short term condensation.
- Weight: 110 g.
- Notes: integrated battery backup possibility for usage in dimly lit rooms, to use the free software airConfig (download) a USB stick, which is able to send and receive EnOcean telegrams, is necessary. USB 300
