SRE Repeater MultiLevel external antenna
Non-returnable
£145.00
Tags:
The repeater is typically used when transmission range problems occur between transmitter and receiver in an existing installation (e.g. due to internal walls, furniture/cabinets etc.).
Level 1, Level 2 and Smart Repeating (rule-based filters) can be set using the free airConfig software.
Ideal for installation in suspended ceilings.
Choose Quantity
Product Details

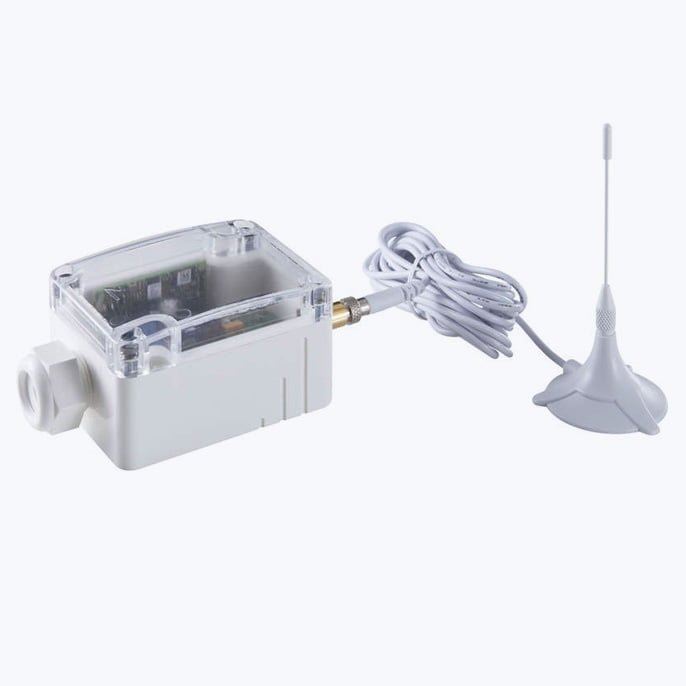

The SRE Repeater MultiLevel External Antenna – extend the range of your radio telegrams.
Technical Details
- Radio technology: EnOcean (IEC 14543-3-10).
- Frequency: 868 MHz.
- Antenna: external with magnetic base - transmitting/receiving antenna
- Data transmission: bidirectional, airConfig ready.
- Power supply: flex. 15..240 V =/~.
- Power consumption: typ. 1 VA (15..240 V =/ ~).
- Functions: level-1, level-2, smart-operation, rule based, max. 10 rules, configured via airConfig.
- Enclosure: PA6.6, pure white, cover PC, transparent, with quick lock screws.
- Protection (IP): IP65 according to EN 60529.
- Cable entry: M20 for wire max. Ø=8 mm.
- Electrical connection: terminal block, max. 1,5 mm².
- Ambient condition: -20..+60 °C, max. 85% rH non-condensing.
- Weight: 110 g.
