SRE Repeater UP
Non-returnable
£95.00
Tags:

The repeater is typically used when transmission range problems occur between transmitter and receiver in an existing installation (e.g. due to internal walls, furniture/cabinets etc.).
Level 1, Level 2 and Smart Repeating (rule-based filters) can be set using the free airConfig software.
Choose Quantity
Product Details

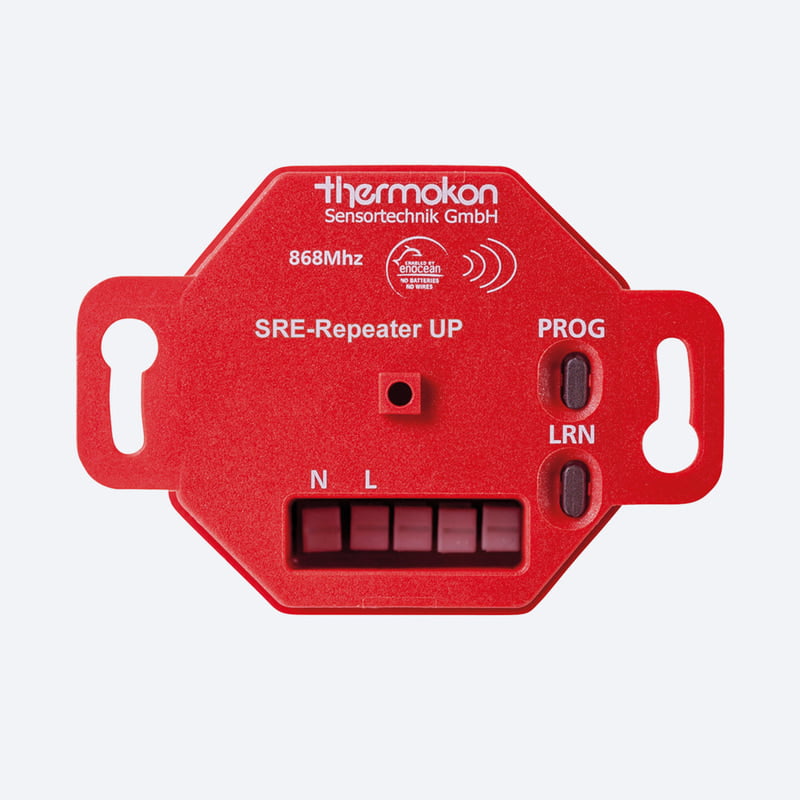

The SRE-Repeater UP – extend the range of your radio telegram.
Technical Details
- Radio technology: EnOcean (IEC 14543-3-10).
- Frequency: 868 MHz, optional:, 902 MHz (Americas).
- Antenna: internal transmitting/receiving antenna.
- Data transmission: bidirectional, airConfig ready.
- Power supply: 100..240 V ~.
- Power consumption: max. 2 VA (100...240 V ~), standby <0,5 W.
- Functions: level-1, level-2, smart-operation, rule based, max. 10 rules, configured via airConfig.
- Enclosure: ABS, red.
- Protection (IP): IP20 according to EN 60529.
- Electrical connection: terminal block, max. 1,5 mm².
- Ambient condition: -20..+60 °C, max. 85% rH non-condensing.
- Weight: 55 g.
- Mounting: flush-mounted in standard EU box (Ø=60 mm, min. depth=45 mm).
