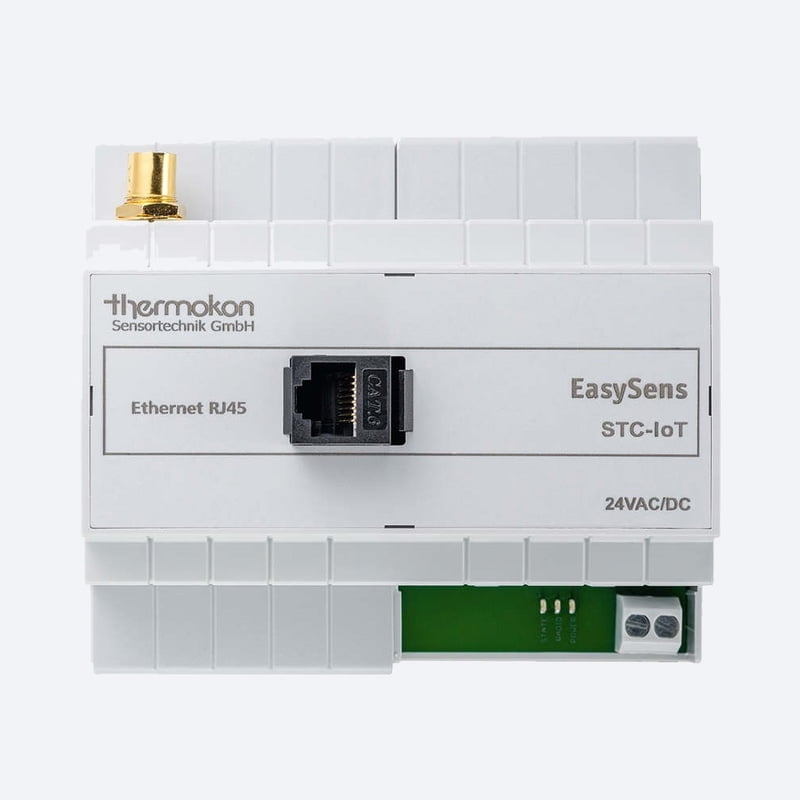

STC-IoT Enocean Gateway
Non-returnable
£315.12
Tags:

Bidirectional radio gateway for the networking of EnOcean sensors and actuators with common cloud applications (e.g. IBM Watson). The new EnOcean Over-IP standard enables the seamless integration of EnOcean devices into the Internet of Things (IoT) via JSON stream- or line-oriented (Command-Line) interface. Browser interface for simple commissioning and administration of the devices. Graphical, data-flow-oriented processing via integrated Node-RED editor (https://nodered.org/) enables simple, rule-based evaluations such as SMS/e-mail alerting when thresholds are exceeded. Easy integration of EasySens devices into online applications. Ideally suited for connection to IP based controller and display systems .
Part Number
669320 Choose Quantity
Product Details
STC-IoT Enocean Gateway.
Technical Details
- Network technology: TCP/IP
- Radio technology: EnOcean (IEC 14543-3-10).
- Frequency: 868 MHz.
- Antenna: external transmitting/receiving antenna with magnetic base.
- Data transmission: bidirectional, airConfig ready.
- Power supply: 15..24 V = (±10%) or 24 V ~ (±10%) SELV.
- Power consumption: typ. 3 W (24 V =) | 5 VA (24 V ~).
- Enclosure: ABS, light grey.
- Protection (IP): IP20 according to EN 60529.
- Electrical connection: terminal block, max. 1,5 mm².
- Ambient condition: 0..+50 °C, max. 85% rH non-condensing.
- Weight: 300 g, without antenna.
- Mounting: prepared for mounting on DIN rail TS35 (35x7,5 mm) according to EN 60715.
- Delivery content: incl. external transmitting/receiving antenna 2,5 m with magnetic base, software for configuration.
