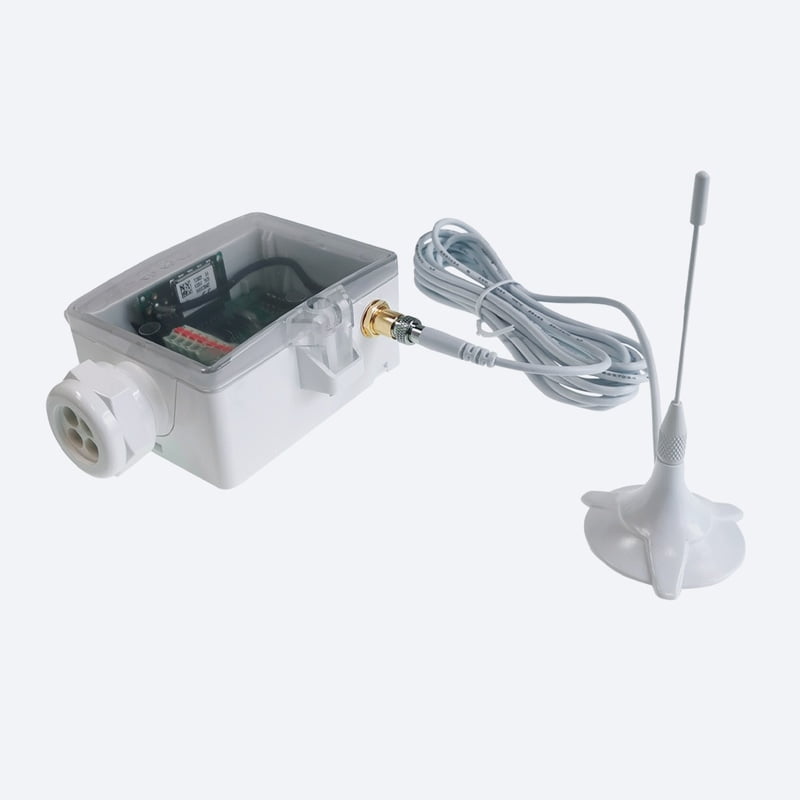

STC65 RS485 Modbus Gateway
Non-returnable
£185.00
Tags:
Bidirectional gateway with interface RS485, Modbus protocol, IP42-enclosure. For evaluation of up to 32 EasySens® sensors or wireless switches. Transmission of field-programmed telegrams to 32 addresses. Incl. ext. transmitting/receiving antenna (2.5 m).
Choose Quantity
Product Details
Technical Details
- Network technology: RS485 Modbus.
- Radio technology: EnOcean (IEC 14543-3-10).
- Frequency: 868 MHz, optional:, 902 MHz (Americas).
- Antenna external: transmitting/receiving antenna with magnetic base.
- Data transmission: bidirectional, SmartACK (SmartACKNOWLEDGE).
- Power supply: 15..24 V = (±10%) or 24 V ~ (±10%) SELV.
- Power consumption: typ. 0,8 W (24 V =) | 2 VA (24 V ~).
- Enclosure: enclosure USE-M, pure white, cover PC, transparent, PC.
- Protection (IP): IP65 according to EN 60529.
- Cable entry: M25 with fourfold cable entry for wire with max. Ø=7 mm.
- Electrical connection: plug-in terminal, max. 1,5 mm².
- Ambient condition: -20..+60 °C, max. 85% rH non-condensing.
- Weight: 110 g, without antenna.
- Delivery content: incl. mounting base enclosure USE-M pure white, incl. external transmitting/receiving antenna 2,5 m with magnetic base, software for configuration.
