Thermokon SRC65-BACnet MS/TP

Thermokon SRC65-BACnet MS/TP

Non-returnable
£198.00
Tags:

The unidirectional SRC65-BACnet MS/TP gateway allows the reception of information from EasySens®  sensors, switches, room units and other transmitters. Details of the communication protocol are described in the software documentation accordingly. The delivery content includes an external antenna for achieving best transmission ranges.


Part Number
396431
Choose Quantity
+ Add to Cart
Product Details

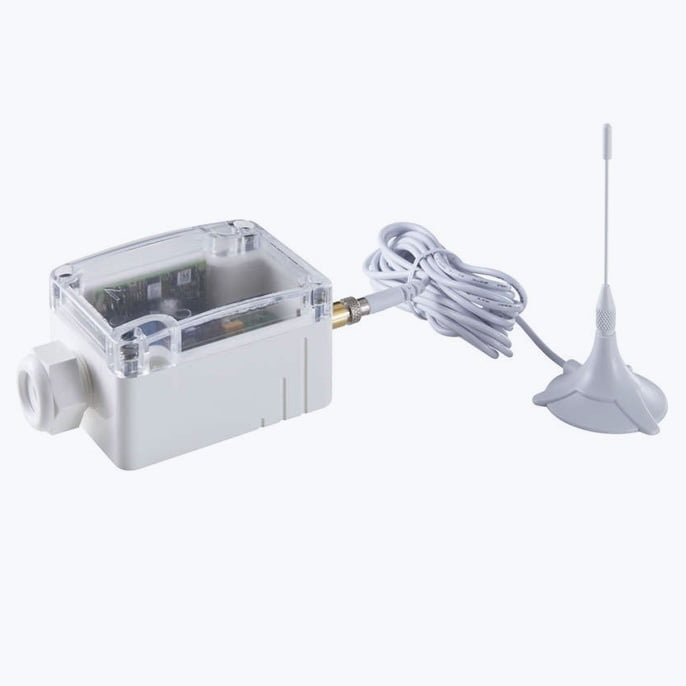

SRC65 EnOcean BACnet MS/TP Gateway

Technical Details
  • Application/type Gateway
  • Purpose Interface translation
  • Configuration BUS, jumper, DIP switches
  • Network technology RS485 BACnet (MS/TP)
  • Radio technology EnOcean (IEC 14543-3-10) 868 MHz, transmission power <10 mW
  • Data transmission unidirectional, receiving channels, 32 (Rx)
  • Operating range temperature (°C) -20..+60
  • Operating range humidity max. 70% rH non-condensing
  • Power supply 15..24 V = (±10%) SELV, 24 V ~ (±10%) SELV
  • Power consumption typ. 1 W (24 V =), 1,3 VA (24 V ~)
  • Enclosure PA6.6, with quick lock screws
  • Colour pure white, transparent cover PC
  • Protection (IP) IP42, according to EN 60529
  • Connection terminal block, max. 1,5 mm²
  • Delivery content incl. external receiving/transmitting antenna (2,5 m) with magnetic base
  • Notes magnetic antenna plate for the external antenna recommended to improve radio coverage
