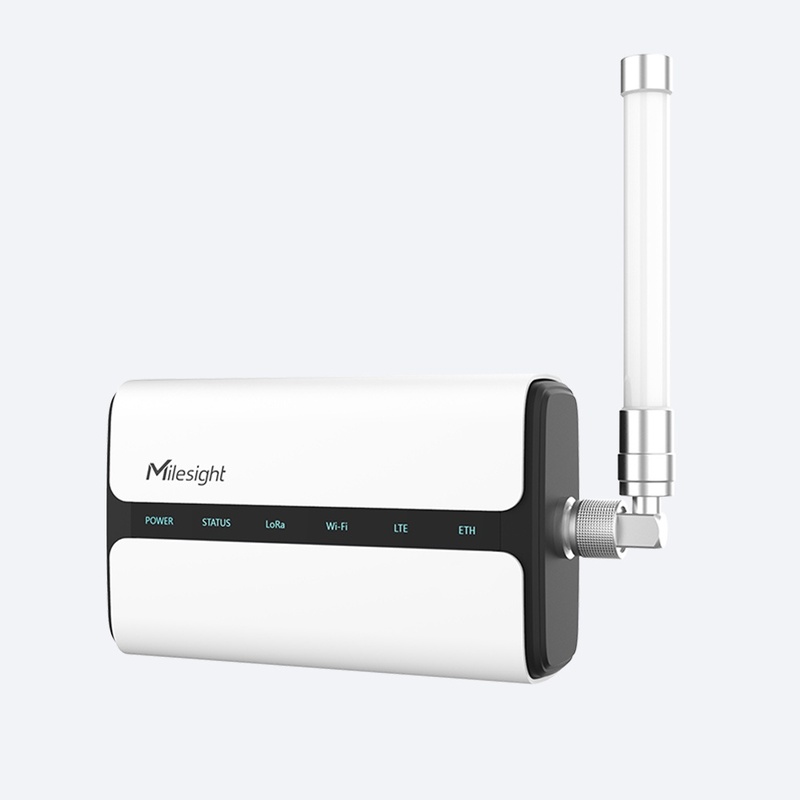

Milesight UG65-L08GL-868M-EA LoRaWAN Gateway (New Cellular Module)

£365.00

A semi-industrial 8-channel LoRaWAN gateway operating at 868 MHz, featuring Ethernet, Wi-Fi, and LTE Cat.1 cellular connectivity. This model replaces the previous Cat.4 version (UG65-L04EU-868M-EA) with a Cat.1 module designed for lower power IoT applications.


Part Number
UG65-L08GL-868M-EA
Choose Quantity
+ Add to Cart
Specifications
Specification
  • CPU
    Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
  • Network
    4G LTE (CAT 1)/GSM
  • Memory
    512 MB DDR4 RAM
  • Channel
    8 (Half/Full-duplex)
  • Power Consumption
    Typical 2.9 W, Max 4.2 W
  • Connector (USB)
    Type C
  • Connector (Ethernet)
    RJ45
  • Net Width (mm)
    180
  • Net Height (mm)
    110
  • Operating Temperature Celsius Min
    -40
  • Operating Temperature Celsius Max
    70
