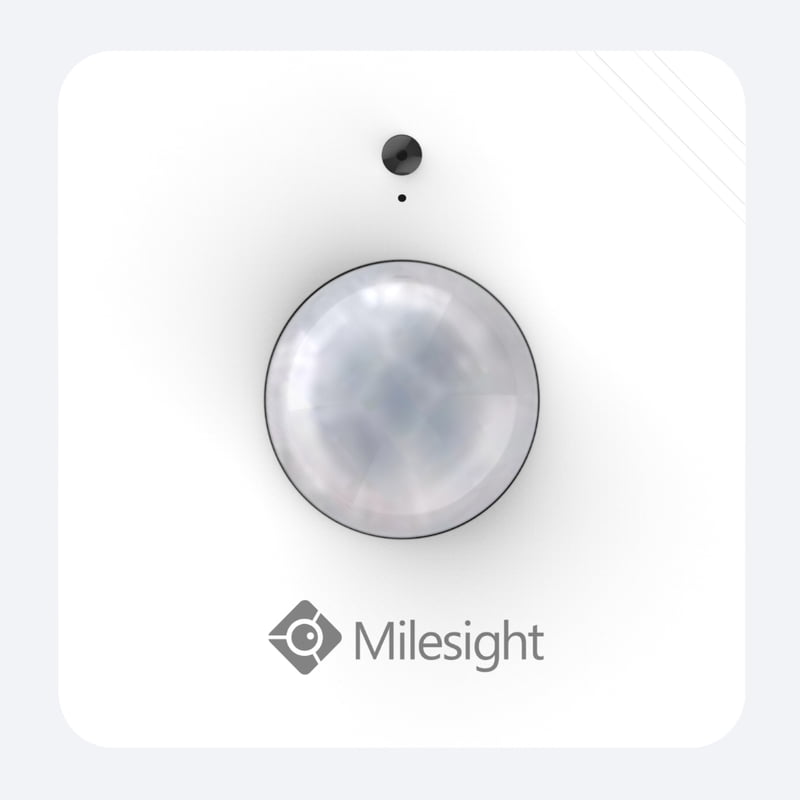

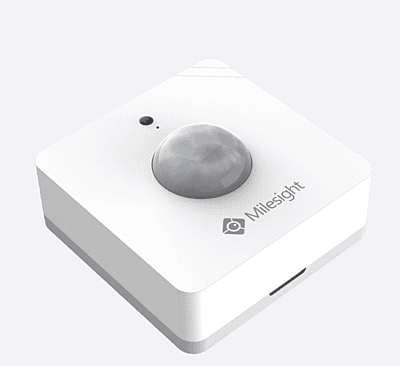

Milesight WS202 LoRaWAN PIR/Motion & Light Level Sensor

Milesight WS202 LoRaWAN PIR/Motion & Light Level Sensor

Name: Milesight WS202 LoRaWAN PIR/Motion & Light Level Sensor
Brand: Milesight
SKU: WS202-868M
Price: 39.99 GBP
Availability: InStock

Non-returnable

£39.99

Tags:

Combined PIR motion detection technology and brightness measurement, Milesight WS202 can easily determine whether an indoor space is being used or not.

Milesight WS202 PIR & Light Sensor is compatible with industry-standard LoRaWAN^® gateways
With a range of up to 15 km in rural areas and 2 km in urban areas
4 Years+ Battery Life

Choose Quantity

+ Add to Cart

Product Details

Specifications

Milesight WS202 LoRaWAN PIR/Motion & Light Level Sensor

1 lux resolution
Measurement from 1 to 60000 lux
Determine the space as Light or Dark according to custom threshold
NFC Configuration using iOS or Android devices

Specification

Expected Battery Life
4 Years
Frequency
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Tx Power
16dBm(868 MHz)/22dBm(915 MHz)/19dBm(470 MHz)
IP Rating
IP30
Sensitivity
-137dBm @300bps
Mode
OTAA/ABP Class A
Horizontal Detection Area
120 °
Vertical Detection Area
100 °
Detection Distance
8m
Configuration
Mobile App via NFC
Power Supply
1 × 1650 mAh ER14335 Li-SOCl2 battery
