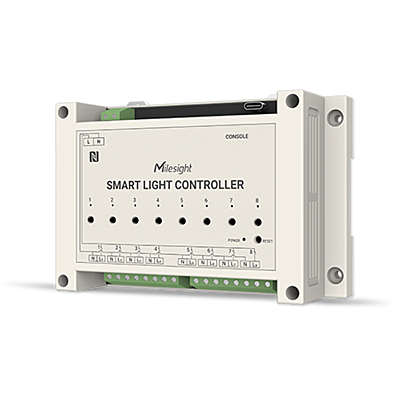

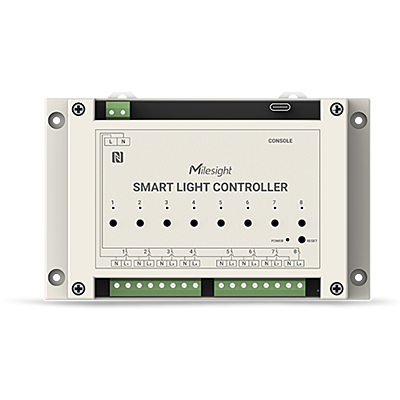

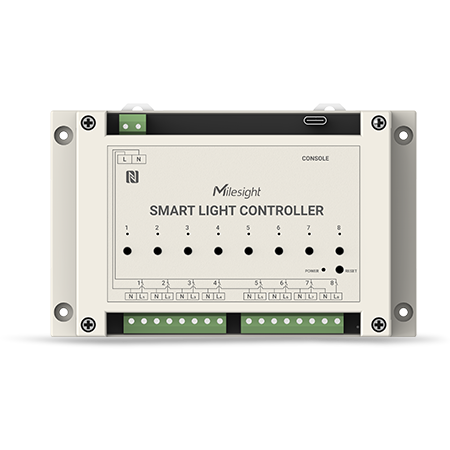

Milesight WS558 Smart Light Controller
£116.00
Upgrade your lighting control with the Milesight WS558, a LoRaWAN® smart light switch designed for seamless automation in homes, offices, and industrial spaces. With wireless connectivity and low power consumption, the WS558 eliminates the need for complex wiring while providing intelligent lighting control at your fingertips.
Model
Choose Quantity
Product Details
Specifications
- Control up to 8 Lighting Circuits
- Remote & Time-Based ON/OFF
- Power Consumption Measurement
- Milesight D2D Communication
- Power-Off Memory Function
- LN Type & Switch Type Optional
Electrical
Input Voltage: 100~250 VAC, 50~60 Hz
Output: 8 Active Outputs (LN) / 8 Passive Switches (Switch)
Capacitive & Inductive Load: Maximum 5A per output, total 16A (LN) / Maximum 5A per switch (Switch)
Resistive Load: Maximum 10A per output, total 16A / Maximum 10A per switch (Switch)
Electrical Measurement: Voltage (VAC), Current (mA), Power Factor (%), Power (W), Power Consumption (kW·h) / none (switch)
Wireless Transmission
Protocol: LoRaWAN®, Milesight D2D
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity: -137dBm
Mode: OTAA/ABP Class C
Software
Configuration: NFC, USB Type-C or Downlink
Switch Control: Local Press or Remote Control
Advanced Features: Multicast, Remote Schedule Switch, Overcurrent Protection, Milesight D2D Agent
Physical Characteristics
Color/Material: Creamy-white, ABS
Operating Temperature: -20°C to +60°C (-4℉ to +140℉)
Relative Humidity: ≤ 95% (Non-condensing)
Dimensions: 145 × 90 × 40 mm (5.7 × 3.54 × 1.57 in)

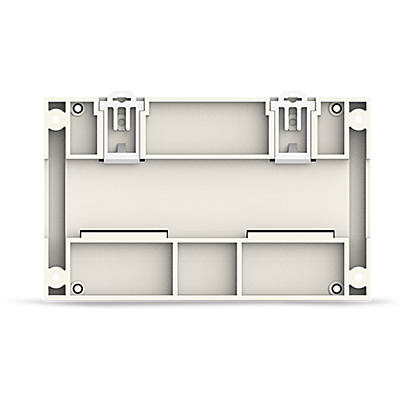

Installation: Wall Mounting, DIN Rail Mounting
Specification
- TechnologyLoRaWAN®, Milesight D2D
- ModeOTAA/ABP Class C
- Sensitivity-137dBm
- FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
- Tx Power16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
