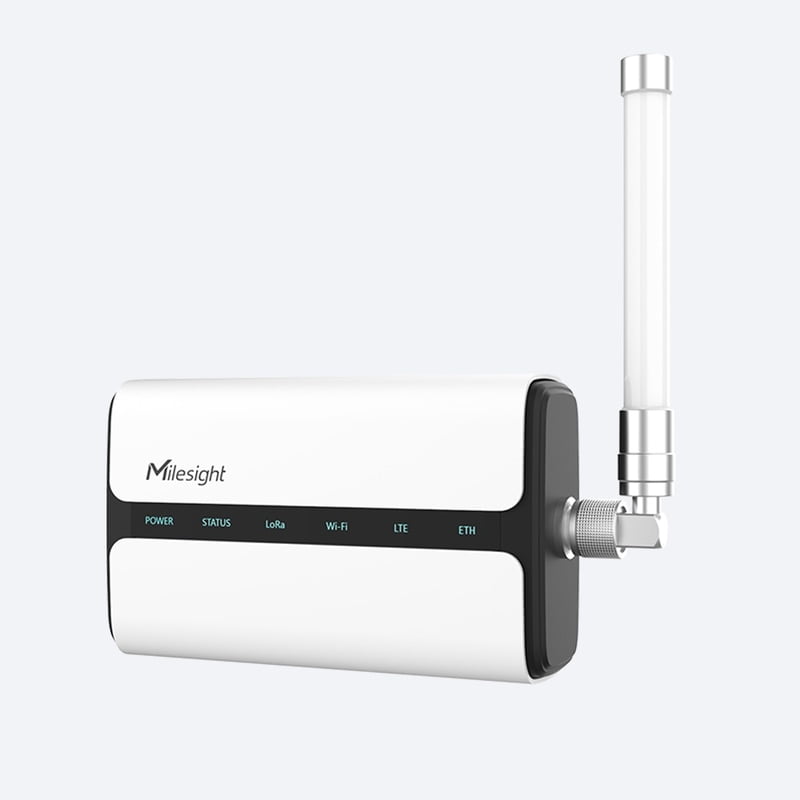

Milesight UG65 LoRaWAN Gateway
Milesight UG65 LoRaWAN Gateway
Milesight UG65 LoRaWAN Gateway
Milesight UG65 LoRaWAN Gateway
Milesight UG65 LoRaWAN Gateway

Milesight UG65 LoRaWAN Gateway

£320.00 - £365.00

Milesight UG65 LoRaWAN Gateway - The Next Generation of Semi-Industrial LoRaWAN Gateways.

Ethernet Only
The UG65 comes in two connectivity options, each suited to different deployment needs. The Ethernet-only version is designed for use in environments with a stable wired network, making it a cost-effective choice where internet infrastructure is already in place. However, it offers less flexibility due to its reliance on Ethernet alone.

Ethernet & LTE
In contrast, the Ethernet and LTE version provides the same core functionality, with the added benefit of 4G cellular connectivity. This makes it ideal for mobile setups, remote locations, or any scenario where wired access may be unreliable or unavailable. It also serves as a robust backup option, ensuring continued operation if the Ethernet connection goes down.


Backhaul
Choose Quantity
+ Add to Cart
Product Details
Specifications
Milesight UG65 LoRaWAN Gateway Outstanding performance makes data processing faster.
  • 512 MB DDR4 RAM
  • NXP 64-bit Quad-Core Processor

New Generation of LoRa Chip
Handling a higher amount of traffic with lower power consumption
  • Semtech SX1302
  • Support SF5 & SF6

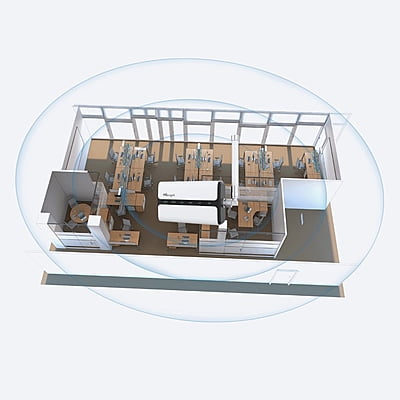

Deep Penetration
Covering up 12 km² (2 km radius) in city applications.

High Capacity
UG65 LoRaWAN Gateway supports receiving data from 8 end-devices simultaneously. And it supports up to 2000 end-devices. (*The full capacity of the gateway will depend on how frequently end-devices are reporting uplinks and receiving downlinks).

Multiple Backhaul Connectivities
Stay connected via Ethernet, cellular and Wi-Fi to deliver encrypted data around the clock.
  • Ethernet
  • 4G LTE
  • Wi-Fi

High Compatibility
With built-in network server, the UG65 also supports Semtech’s latest packet forwarder, and is compatible with multiple network server platforms like AWS, TTN, ChirpStack, Loriot and Everynet which offers a wide range of options for data processing.
IP65 Rating - The dustproof and basic waterproof capabilities make UG65 LoRaWAN gateway more versatile even in industrial environments
    • IP65 Rating
    • NXP Quad-Core Processor
    • Semtech SX1302 LoRa Chip
    • Multiple Backhaul Connectivities
    • Embedded Network Server
    • Compatible with Multiple Network Servers
    • Global LoRaWAN® Frequency Plans
    • BACnet/IP Support
(CN470/RU864/IN865/EU868/AU915/US915/KR920/AS923)

Specification
  • CPU
    Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
  • Network
    4G LTE (CAT 1)/GSM
  • Memory
    512 MB DDR4 RAM
  • Supply voltage range
    10-32 V DC
  • Speed (Ethernet)
    10, 100 Mbit/s
  • PoE (Ethernet)
    yes (pins 4,5,7,8)
  • Frequency
    868 MHz
  • Rated supply voltage
    24 V DC
  • Channel
    8 (Half/Full-duplex)
  • Output Power
    27 dBm Max
  • Power Consumption
    Typical 2.9 W, Max 4.2 W
  • Connector (USB)
    Type C
  • Connector (Ethernet)
    RJ45
  • Net Width (mm)
    180
  • Net Height (mm)
    110
  • Net Depth (mm)
    56.5
  • Operating Temperature Celsius Min
    -40
  • Operating Temperature Celsius Max
    70
  • Housing Materials
    Plastic
  • Warranty (years)
    3 Years
